RAYBESTOS part description

Product Description

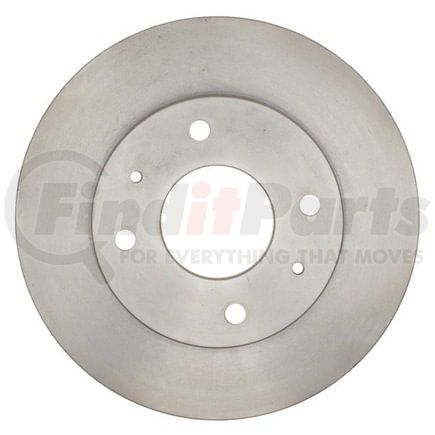

Raybestos R-Line Brake Rotor

Application Summary

1998-1989 Hyundai Sonata Front

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.72 IN
Center Hole Diameter 69.1 MM
9565 Conventional
Discard Thickness 0.787 IN
Discard Thickness 20 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 4.5 IN
Mounting Bolt Hole Circle Diameter 114.3 MM
Mounting Bolt Hole Diameter 0.5 IN
Mounting Bolt Hole Diameter 12.7 MM
Mounting Bolt Hole Quantity 4
Nominal Thickness 0.865 IN
Nominal Thickness 21.95 MM
Outside Diameter 10.1 IN
Outside Diameter 256.55 MM
Overall Height 1.8 IN
Overall Height 45.7 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 4
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
UPC 00829352369852

Part Interchanges

Fits Vehicles

  • Hyundai Sonata (1989-1998)
