RAYBESTOS part description

Product Description

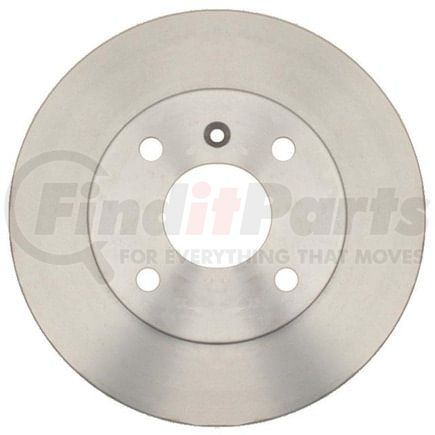

Raybestos R-Line Brake Rotor

Application Summary

1992-1989 Daihatsu Charade Front

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.208 IN
Center Hole Diameter 56.1 MM
9565 Conventional
Discard Thickness 0.669 IN
Discard Thickness 17 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 3.937 IN
Mounting Bolt Hole Circle Diameter 100 MM
Mounting Bolt Hole Diameter 3.937 IN
Mounting Bolt Hole Diameter 100 MM
Mounting Bolt Hole Quantity 4
Nominal Thickness 0.71 IN
Nominal Thickness 18.05 MM
Outside Diameter 9.21 IN
Outside Diameter 233.95 MM
Overall Height 1.85 IN
Overall Height 47 MM
Salability Restrictions No
Solid Or Vented Type Rotor Solid
Stud/Lug Hole Quantity 4
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
UPC 00829352465936

Part Interchanges

Fits Vehicles

  • Daihatsu Charade (1989-1992)
