RAYBESTOS part description

Product Description

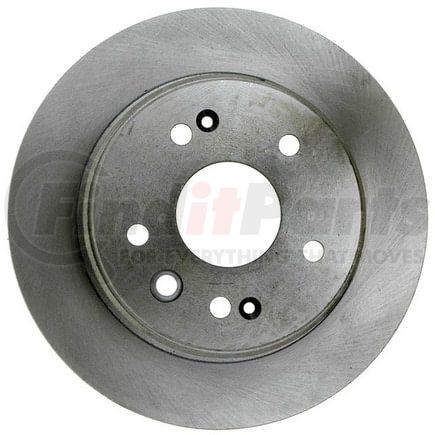

Raybestos R-Line Brake Rotor

Application Summary

2003-1999 Acura TL Rear

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 2.52 IN
Center Hole Diameter 64 MM
9565 Drum-In-Hat
9540 Non-Directional
Discard Thickness 0.295 IN
Discard Thickness 7.5 MM
Harmonize Code 8708.30.5030
Material Cast Iron
Mounting Bolt Hole Circle Diameter 4.5 IN
Mounting Bolt Hole Circle Diameter 114.3 MM
Mounting Bolt Hole Diameter 0.5 IN
Mounting Bolt Hole Diameter 12.7 MM
Mounting Bolt Hole Quantity 5
Nominal Thickness 0.355 IN
Nominal Thickness 9 MM
Outside Diameter 11.11 IN
Outside Diameter 282.2 MM
Overall Height 2.32 IN
Overall Height 58.95 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
UPC 00829352372470

Part Interchanges

Fits Vehicles

  • Acura TL (1999-2003)
