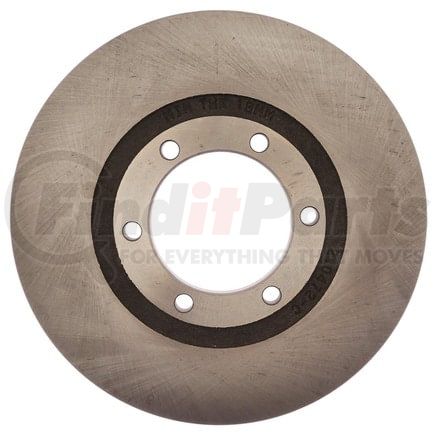

96013R by RAYBESTOS - Raybestos R-Line Brake Rotor

Raybestos 96013R - Raybestos R-Line Brake Rotor

Part Number
96013R
Manufacturer
RAYBESTOS
Description

Raybestos R-Line Brake Rotor

details

NO STOCK AVAILABLE

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

Sometimes we may have similar parts for sale, click the button below to see if anything matches.

Search Alternatives

RAYBESTOS part description

Product Description

Raybestos R-Line Brake Rotor

Application Summary

1993-1987 Mazda B2200 Front, 1993-1987 Mazda B2600 Front, 1987-1986 Mazda B2000 Front

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 3.388 IN
Center Hole Diameter 86.05 MM
9565 Conventional
Discard Thickness 0.709 IN
Discard Thickness 18 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 4.25 IN
Mounting Bolt Hole Circle Diameter 107.95 MM
Mounting Bolt Hole Diameter 4.25 IN
Mounting Bolt Hole Diameter 107.95 MM
Mounting Bolt Hole Quantity 6
Nominal Thickness 0.785 IN
Nominal Thickness 19.95 MM
Outside Diameter 10.08 IN
Outside Diameter 256.05 MM
Overall Height 0.785 IN
Overall Height 19.95 MM
Salability Restrictions No
Solid Or Vented Type Rotor Solid
Stud/Lug Hole Quantity 6
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
UPC 00829352369340

Part Interchanges

RAYBESTOS 96013R Cross Reference

We have 83 alternatives for the 96013R by RAYBESTOS:

Fits Vehicles

  • Mazda B2600 (1987-1993)
  • Mazda B2200 (1987-1993)
  • Mazda B2000 (1986-1987)
