RAYBESTOS part description

Product Description

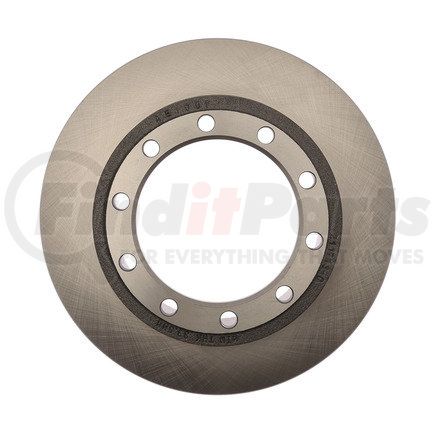

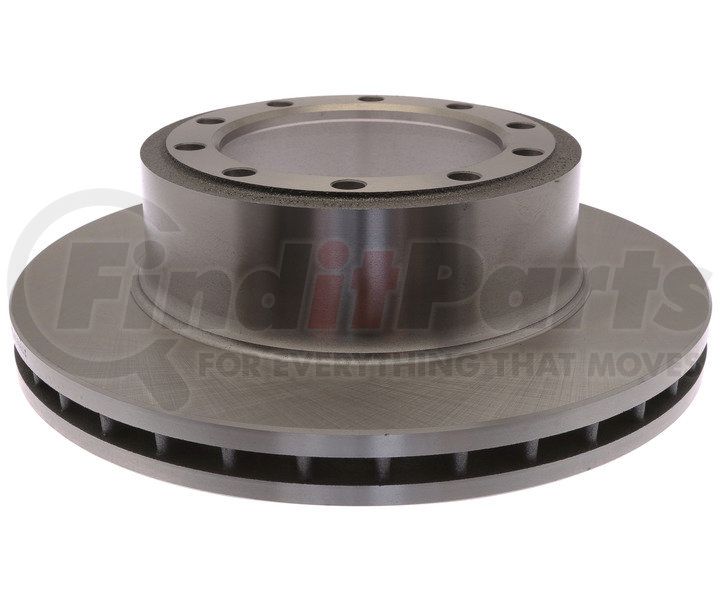

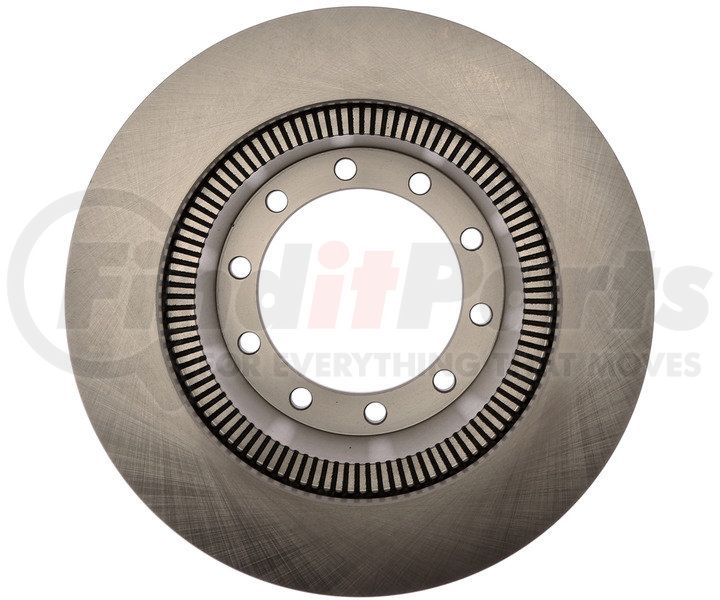

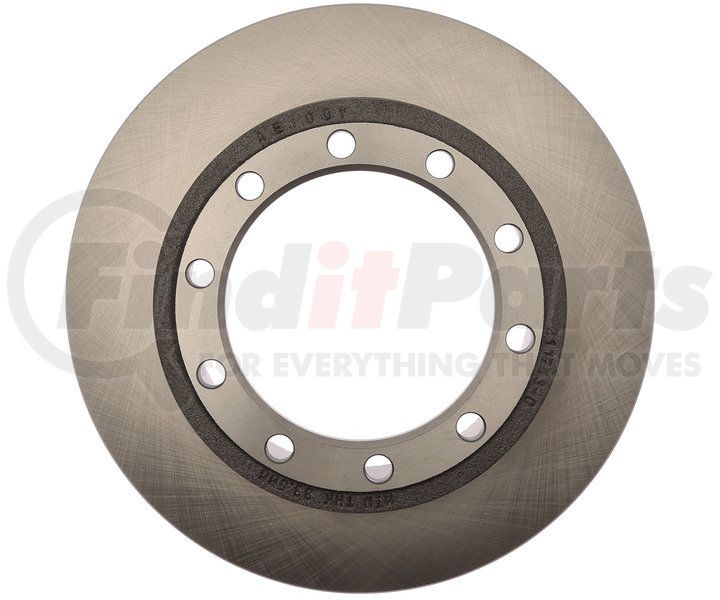

Raybestos R-Line Brake Rotor

Application Summary

2020-2003 Freightliner M2 106 Front, 2020-2003 Freightliner M2 106 Rear, 2009-2002 International 4300 Front, 2009-2002 International 4300 Rear, 2005-1990 International 4700 Front, 2005-1990 International 4700 Rear

Product Attributes

ABS Tone Ring Included Yes
Center Hole Diameter 6 IN
Center Hole Diameter 152.4 MM
9565 Conventional
9540 Non-Directional
Discard Thickness 1.32 IN
Discard Thickness 33.55 MM
Harmonize Code 8708.30.5030
Material Cast Iron
Mounting Bolt Hole Circle Diameter 7.25 IN
Mounting Bolt Hole Circle Diameter 184.15 MM
Mounting Bolt Hole Diameter 0.595 IN
Mounting Bolt Hole Diameter 15.1 MM
Mounting Bolt Hole Quantity 10
Nominal Thickness 1.44 IN
Nominal Thickness 36.6 MM
Outside Diameter 15 IN
Outside Diameter 381 MM
Overall Height 4.44 IN
Overall Height 112.8 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 10
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) CN
UPC 00887213286434

Part Interchanges

Fits Vehicles

  • Freightliner M2 T (2006-2010)
  • Freightliner MCL (2011, 2014)
  • Freightliner MC Line (2001, 2005-2018)
  • Freightliner MB Line (1995-2022)
  • Freightliner B2 (2005-2019)
  • International 4100 SBA (2006-2008)
  • Freightliner FL70 (1998-2005)
  • International 3000RE (1996-2002, 2005)
  • International 3000IC (2000-2002)
  • Freightliner FS65 (1996-2008)
  • Freightliner FL50 (1998-2005)
  • Freightliner MB60 (1992-1995)
  • Freightliner MB70 (1992-1995)
  • International 3000 (1996-2002)
  • Freightliner M2 (2005-2020)
  • Freightliner M2 100 (2003-2010)
  • Peterbilt 337 (2010-2012)
  • Peterbilt 325 (2008-2012)
  • Freightliner MT45 (2006-2019)
  • Freightliner MT35 (2006-2009)
  • Freightliner Business Class M2 (2004-2012)
  • Freightliner MT55 (1999-2019)
  • Freightliner FL60 (1998-2005)
  • International 5000 (1992-1999)
  • International 7400 (2006-2007)
  • International 7100 (1990-1995)
  • International 4900 (1990-2005)
  • International 4800 (1990-2003)
  • International 4700LPX (1995-2002)
  • International 4700LP (1990-2002)
  • International 4700 (1990-2005, 2008)
  • International 4600LP (1990-1994)
  • International 4600 (1990-1995)
  • International 4400LP (2002-2009)
  • International 4400 (2002-2009)
  • International 4300LP (2002-2009)
  • International 4300 (2002-2009)
  • International 4200LP (2003-2008)
  • International 4200 (2002-2009)
  • International 4100 (2006-2009)
  • International 3900FC (1991-1994, 1996)
  • International 3800 (1990-2004)
  • International 3700 (1990-1994)
  • International 3600 (1992-1999, 2001-2002)
  • International 3400 (1996-2002)
  • International 3200 (2002-2009)
  • International 3000FE (1997-1999)
  • International 2674 (1992-1999)
  • International 2654 (1992-2001)
  • International 2574 (1994-1999)
  • International 2554 (1992-2001)
  • International CXT (2006-2007)
  • International 1652SC (1998-2004)
  • International 3300 (2005-2009)
  • Freightliner M2 112 (2003-2020)
  • Kenworth T270 (2008-2018)
  • Kenworth T170 (2008-2018)
  • Kenworth T370 (2008-2018)
  • Kenworth T300 (2002-2008)
  • Freightliner M2 106 (2003-2020)
  • Peterbilt 335 (2008-2010)
  • Peterbilt 330 (2008-2012)
  • Itasca Suncruiser (2013-2016)
  • Forest River Georgetown GT7 (2020-2022)
  • Fleetwood Southwind (2018-2020)
  • Fleetwood Fortis (2021)
  • Fleetwood Bounder Anniversary Edition (2021)
  • Fleetwood Bounder Classic (2010, 2013)
  • Fleetwood Bounder (2010, 2017-2019, 2021-2022)
  • Winnebago Suncruiser (2016)
  • Winnebago Adventurer (2013-2017)
  • IC Corporation RE School Bus (2003-2009)
  • Ford F-59 Commercial Stripped Chassis (2011-2022)
  • IC Corporation RE Integrated (2005)
  • IC Corporation RE Commercial (2003-2009)
  • IC Corporation BE Commercial Bus (2008)
  • Workhorse Custom Chassis W52 (2002-2005)
  • IC Corporation BE School Bus (2008-2009)
  • IC Corporation HC Integrated Commercial (2007-2009)
  • Sterling Truck Acterra (2003-2008)
  • Sterling Truck L7500 (2002-2006)
  • IC Corporation CE School Bus (2003-2004)
  • Workhorse Custom Chassis W22 (2001-2011)
  • IC Corporation CE Commercial (2003-2008)
  • IC Corporation CE Integrated (2005-2009)
  • Blue Bird TC1000 (1997-2000)
  • Blue Bird TC2000 (1989-2004)
  • Workhorse W22 (2001-2009)
  • Workhorse W21 (2007-2009)
  • Workhorse W20 (2001-2009)
  • Workhorse LF72 (2005-2009)
  • Sterling Truck Acterra 7500 (2001-2007)
  • Sterling Truck Acterra 6500 (2001-2007)
  • Sterling Truck Acterra 5500 (2001-2007)
  • Ford F-53 Motorhome Chassis (2008-2009, 2011-2022)
  • Ford F-750 (2004-2008)
  • Ford F-650 (2004-2008)
