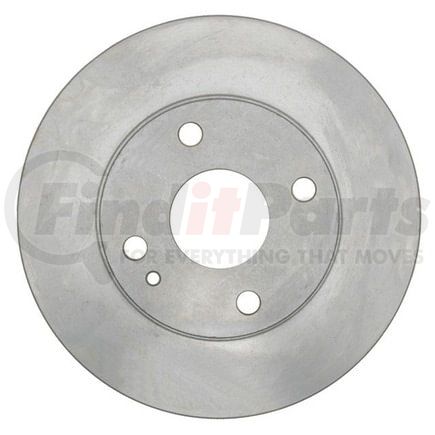

(888) 312-8812 Login SignupRAYBESTOS 6130R Raybestos R-Line Brake Rotor
$2999
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 24
RAYBESTOS 6130R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
1998,1996-1991 Ford Escort Front, 1998-1990 Mazda Protege Front, 1998-1991 Mercury Tracer Front, 1995-1990 Mazda 323 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 6130R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.17 IN |
| Center Hole Diameter | 55.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 3.93 IN |
| Mounting Bolt Hole Circle Diameter | 99.8 MM |
| Mounting Bolt Hole Diameter | 0.509 IN |
| Mounting Bolt Hole Diameter | 12.95 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.865 IN |
| Nominal Thickness | 21.95 MM |
| Outside Diameter | 9.25 IN |
| Outside Diameter | 234.95 MM |
| Overall Height | 1.77 IN |
| Overall Height | 44.95 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352365182 |
RAYBESTOS 6130R Cross References
| Brand | Part Number |
|---|---|
| 829352365182 | |
| ADVANCE AUTO PARTS | 141634, YH141634, YH141634C, YH141634P |
| ALTROM IMPORTS | A05475 |
| AUTOPART INTERNATIONAL | 78418 |
| AUTOSPECIALTY | JBR548, JBR548E |
| AUTOXTRA | 61996 |
| AUTOZONE | 5475, 5475B, 5475DG, 5475DL, DL5475 |
| Autoxtra | AX5475 |
| BECK/ARNLEY | 080-2381, 083-2381 |
| BENDIX | 141634 |
| BOSCH | 20010311, RBR5475 |
| BRAKE HEADQUARTERS | BR54405 |
| BRAKE PRO | 4616130 |
| BRAKEBEST | 20010311, 6130, 6130FZN, 6130R, 6130RGS, 81-61996, BD61996 |
| BREMBO | 09.5581.80, 25509 |
| Brembo | 09.5581.34 |
| Bridgestone | 7075469 |
| CALIFORNIA DRUM & ROTOR | 61996 |
| CENTRIC | 120.45039, 121.45039, 125.45039, 126.45039SL, 126.45039SR, 127.45039L, 127.45039R, 128.45039L, 128.45039R, 320.45039, 320.45039F |
| CENTURY | 9462 |
| CONTINENTAL-CONTITECH | CW22165 |
| Casting Numbers | 325255, 4524, 54751 |
| Centric Parts | 120.45039, 121.45039, 125.45039, 126.45039SL, 126.45039SR, 127.45039L, 127.45039R, 128.45039L, 128.45039R, 320.45039, 320.45039F |
| DELPHI | RB72 |
| DURA CORP | BR5475 |
| DuraGo | BR31284, BR5475 |
| EIS BRAKES | D17499 |
| EUROROTOR | MA844 |
| FADE FREE | 61996 |
| FORD | F1CZ1125A, F2CZ1125B, F3CZ1125B |
| GREN | 635902 |
| GUARDIAN | 52-61996 |
| INTERBRAKES | MZ341V |
| MAGMA PRODUCTS | PMR203036 |
| MAZDA | BR703325X, BR703325XA, BR703325XD |
| MCI | 6057 |
| MIDAS | BR1677 |
| MIGHTY DISTRIBUTING SYSTEM | 5475 |
| MOTORCRAFT | BRR82 |
| NEWTEK AUTOMOTIVE | 5475 |
| Newtek Automotive USA | 5475 |
| PARTS MASTER | P61996 |
| PROMAX | 14-5475 |
| QUALIS | 5475 |
| QUALITEE INTERNATIONAL | 64-74-430 |
| QUALITY BRAND | 5475 |
| QUINTON HAZELL | BDC4386 |
| Qualis | 31284 |
| ROADMATES | 526150 |
| ROCKHILL | 5475 |
| SEARS | 17882 |
| STANDARD ROTORS AND DRUMS | 5475 |
| THE UNIVERSAL GROUP | 102750 |
| TRUSTAR | 474430, R74430 |
| TRW | DF3089S |
| UAP | 5475 |
| Ultra Brake | MA-844 |
| Universal | 102750 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50564 |
| WAGNER | BD61996 |
| WAGNER BRAKE | BD61996, SB6130 |
| WINHERE | 442001, YH2001 |
RAYBESTOS 6130R Fits Vehicles
- Mazda Protege (1990-2001)
- Mazda 323 (1990-1995)
- Mercury Tracer (1991-1998)
- Ford Escort (1991-1998)
