(888) 312-8812 Login SignupRAYBESTOS 96023R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

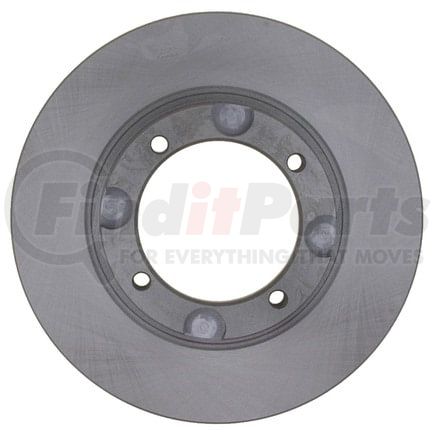

RAYBESTOS 96023R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
1987-1986 Hyundai Excel Front, 1984-1979 Dodge Colt Front, 1982-1979 Plymouth Champ Front, 1984-1979 Plymouth Colt Front, 1988-1987 Mitsubishi Precis Front, 1987 Mitsubishi Galant Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 96023R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.388 IN |
| Center Hole Diameter | 86.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.449 IN |
| Discard Thickness | 11.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.095 IN |
| Mounting Bolt Hole Circle Diameter | 104 MM |
| Mounting Bolt Hole Diameter | 4.095 IN |
| Mounting Bolt Hole Diameter | 104 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.512 IN |
| Nominal Thickness | 13 MM |
| Outside Diameter | 9.005 IN |
| Outside Diameter | 228.75 MM |
| Overall Height | 1.555 IN |
| Overall Height | 39.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352369388 |
RAYBESTOS 96023R Cross References
| Brand | Part Number |
|---|---|
| 829352369388 | |
| ADVANCE AUTO PARTS | 141291, YH141291 |
| AMERICAN REMANUFACTURED | 789-16003, 89-16003 |
| AUTOPART INTERNATIONAL | 78082 |
| AUTOSPECIALTY | JBR116, JBR116E |
| AUTOXTRA | AX3170 |
| AUTOZONE | 3170, 3170DG |
| BECK/ARNLEY | 080-1586, 083-1586 |
| BENDIX | 141291 |
| BOSCH | 16010246 |
| BRAKE HEADQUARTERS | BR18391 |
| BRAKEBEST | 16010246, 96023, 96023R, 96023RGS |
| BREMBO | 08.4974.10, 25118 |
| CALIFORNIA DRUM & ROTOR | 60499, 60796 |
| CENTRIC | 120.46003, 121.46003 |
| CENTURY | 9315 |
| Casting Numbers | 210449-C, 210574-C, 31701, 325736 |
| Centric Parts | 120.46003, 121.46003 |
| DAYTON WALTHER | D7366 |
| DELPHI | RB121 |
| DURA CORP | BR31170, BR3170 |
| DuraGo | BR3170 |
| EIS BRAKES | D9210 |
| EUROROTOR | CH302 |
| GIRLING | GR900 |
| GREN | 610701 |
| GUARDIAN | 52-60796 |
| INTERBRAKES | DG031P |
| ITM ENGINE COMPONENTS | 1600306 |
| MCI | 3906, 4085 |
| MIDAS | BR1465 |
| MIGHTY DISTRIBUTING SYSTEM | 3170 |
| MITSUBISHI | 5171221300, 5171221A00, MB058582, MB316729 |
| NEWTEK AUTOMOTIVE | 3170 |
| Newtek Automotive USA | 3170 |
| PILENGA | 5603 |
| QUALIS | 3170 |
| QUALITY BRAND | 3170 |
| ROADMATES | 526579 |
| ROCKHILL | 3170 |
| SEARS | 17404 |
| STANDARD ROTORS AND DRUMS | 3170 |
| THE UNIVERSAL GROUP | 124700 |
| TRW | 1952, DF1952S |
| UAP | 3170 |
| Universal | 124700 |
| VEMO | V48 72 0026 |
| VERA | 3401667 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50395 |
| WAGNER BRAKE | BD60499, BD60796, BD60876, BD97292 |
| WINHERE | YH1092 |
RAYBESTOS 96023R Fits Vehicles
- Mitsubishi Precis (1987-1988)
- Mitsubishi Galant (1987)
- Plymouth Colt (1979-1984)
- Plymouth Champ (1979-1982)
- Dodge Colt (1979-1984)
- Hyundai Excel (1986-1987)
