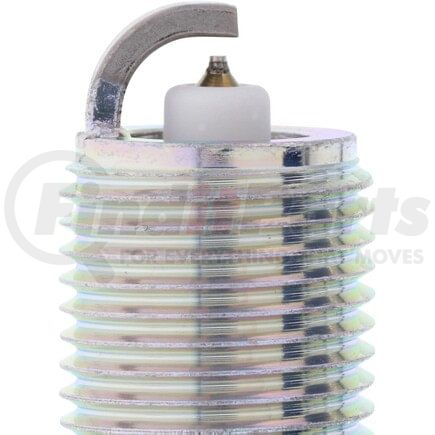

NGK Spark Plugs 97417 - NGK Laser Platinum Spark Plug
- Part Number
- 97417
- Manufacturer
- NGK SPARK PLUGS
- Description
-
NGK Laser Platinum Spark Plug
details
$1449
In stock
limited availability at this price!
. Learn more
NGK SPARK PLUGS part description
Product Description
NGK Laser Platinum Spark Plug
Features & Benefits
- NGK Laser Platinum spark plugs provide high ignitability and longer service life compared to conventional nickel spark plugs. Actual OE or equivalent replacement spark plug.
- ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction fine wire platinum alloy center electrode provides consistent performance
- Laser Platinum plugs are tested to the highest standards to ensure quality and durability. Engineered specifically for OE applications.
- PLATINUM ALLOY CENTER ELECTRODE: Longer wearing and higher temperature resistance compared to traditional nickel spark plugs
- Laser platinum plugs provide stable idling, superior anti-fouling, improved fuel efficiency and lower emissions. High-grade pure alumina ceramic and 98% pure copper core prevents spark plug from overheating and provides reliable starts.
- PLATINUM TIP GROUND ELECTRODE: Unless OE specified, platinum protection at the ground electrode provides excellent ignitability and service life
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE fine wire platinum alloy plugs
Product Attributes
| Part Number | PFR7S8G |
| Stock Number | 97417 |
| Resistance | 5000.0 82 |
| Ground Electrode Tip Design | Standard |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Copper |
| Electrical Terminal Type | Stud |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Platinum |
| Pre-Gap Size | .032 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 0.6299212598 IN |
| Insulator Height | 50.50 MM |
| Manufacturer Heat Range | 7 |
| Seat Type | Flat |
| Reach | 0.750 IN |
| Thread Diameter | 14.00 MM |
| 9608 | Fine Wire |
| 9745 | Crush |
| 9805 | Mid Projection |
| Short Style Spark Plug | No |
| Service Number | PFR7S8G |
| Washer Included | Yes |
| Grade Type | Performance |
| Hex Size | 5/8" (16mm) |
| Insulator Height | 1.99 IN |
| Thread Diameter | 0.551 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| 6648 | 0.0 IN |
| Ground Electrode Tip Material | Platinum |
| 9459 | No |
| 9506 | 0.14 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295974179 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
Part Interchanges
Fits Vehicles
- Audi R8 (2018, 2020-2023)
Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
