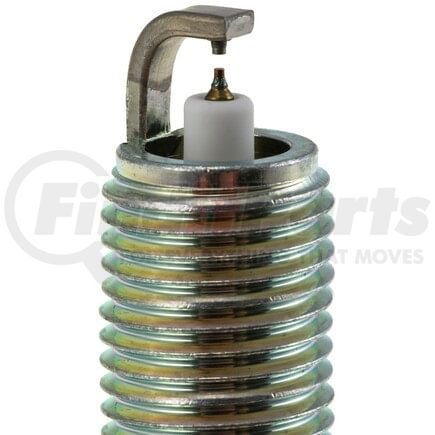

NGK Spark Plugs 96210 - NGK Laser Iridium High Ignitability Spark Plug
- Part Number
- 96210
- Manufacturer
- NGK SPARK PLUGS
- Description
-
NGK Laser Iridium High Ignitability Spark Plug
details
$1899
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
NGK SPARK PLUGS part description
Spark Plug, Gas
Product Description
NGK Laser Iridium High Ignitability Spark Plug
Features & Benefits
- NGK Laser Iridium High Ignitability spark plugs are designed with the most advanced OE tip configurations to maximize service life and combustion efficiency resulting in a quicker throttle response, smoother idle and better cold starts.
- ACTUAL OE or EQUIVALENT HIGH IGNITABILITY DESIGN: DFE tip and iridium alloy center electrode produce the most advanced OE spark plug technology
- Laser Iridium plugs are tested to the highest standards to ensure quality and durability. Engineered specifically for OE applications.
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- Iridium tipped center electrode provides durability six times harder than platinum. NGK's high-grade pure alumina ceramic and 98% pure copper core prevents the spark plug from overheating while providing reliable starts.
- DFE DESIGN: Double fine electrode (platinum pin) provides more complete fuel burn, quicker throttle response, smoother idle and better cold starts
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Best for vehicles with OE DFE iridium alloy plugs
Product Attributes
| Stock Number | 96210 |
| Part Number | DILKAR6T8 |
| Resistance | 10000.0 82 |
| Ground Electrode Tip Design | Dual Fine Electrode (DFE) - High Ignitability |
| Ground Configuration | J-Gap |
| Ground Electrode Core Material | Nickel |
| Electrical Terminal Type | Cup |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .032 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 14mm |
| Insulator Height | 51.00 MM |
| Manufacturer Heat Range | 6 |
| Seat Type | Flat |
| Reach | 26.5 MM |
| Thread Diameter | 12.00 MM |
| Resistor Type | Yes |
| Short Style Spark Plug | No |
| Service Number | DILKAR6T8 |
| Washer Included | Yes |
| Grade Type | Performance |
| Insulator Height | 2.01 IN |
| Reach | 1.043 IN |
| Thread Diameter | 0.472 IN |
| Insulator Material | Ceramic |
| 6648 | 0.0 IN |
| Ground Electrode Tip Material | Platinum |
| 9459 | No |
| 9506 | 0.16 IN |
| 9608 | Fine Wire |
| 9745 | Crush |
| 9805 | Mid Projection |
Additional Information
| Harmonized Tariff Code (HTS) | 8511100000 |
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| UPC | 00087295962107 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
Part Interchanges
Fits Vehicles
- Lexus RX450h+ (2024)
- Toyota Grand Highlander (2024)
- Toyota Prius AWD-e (2023-2024)
- Toyota Prius (2023-2024)
- Toyota Prius Prime (2023-2024)
- Lexus RX350h (2023-2024)
- Toyota Crown (2023-2024)
- Lexus NX350h (2022-2024)
- Lexus NX250 (2022-2024)
- Lexus NX450h+ (2022-2024)
- Lexus ES250 (2021-2024)
- Toyota Venza (2021-2024)
- Toyota Sienna (2021-2024)
- Toyota RAV4 Prime (2021-2024)
- Toyota Highlander (2020-2024)
- Lexus UX250h (2019-2024)
- Toyota Corolla (2019-2022)
- Lexus ES300h (2019-2024)
- Toyota RAV4 (2019-2024)
- Toyota Avalon (2019-2022)
- Toyota Camry (2018-2024)
