Name: NGK Spark Plugs 91276 NGK Ruthenium HX High Ignitability Spark Plug
SKU: 91276
Price: 12.99 USD
Availability: InStock

NGK SPARK PLUGS part description

Product Description

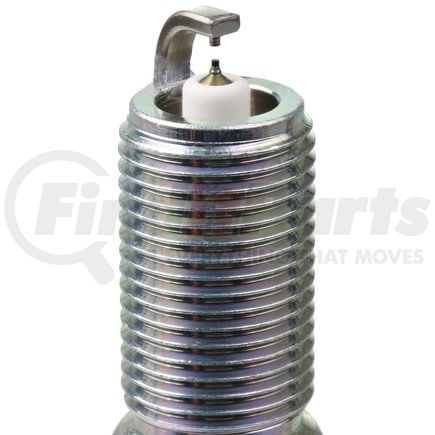

NGK Ruthenium HX High Ignitability Spark Plug

Features & Benefits

HIGH IGNITABILITY DOUBLE FINE ELECTRODE DESIGN: Combines 0.6 millimeter ruthenium center with opposed fine wire platinum ground electrode
RUTHENIUM ALLOY CENTER ELECTRODE: NGK's patented ruthenium technology produces maximum performance, ignitability & durability at high temperatures
PLATINUM PIN TYPE GROUND ELECTRODE: Provides more complete fuel burn, quicker throttle response, smoother idle and better cold starts
SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
RECOMMENDED USAGE: Modern vehicles using OE DFE type spark plugs or for those seeking an aftermarket plug with the latest OE technology

Product Attributes

Stock Number	91276
Part Number	LTR6AHX
Resistance	5000.0 82
Ground Electrode Tip Design	Dual Fine Electrode (DFE) - High Ignitability
Ground Configuration	J-Gap
Ground Electrode Core Material	Nickel
Electrical Terminal Type	Non-Removable Nut
Center Electrode Core Material	Copper
Center Electrode Tip Material	Ruthenium
Pre-Gap Size	.044 IN
Ground Electrode Quantity	1
Hex Size	5/8 IN
Insulator Height	52.50 MM
Manufacturer Heat Range	6
Seat Type	Tapered
Reach	25.00 MM
Thread Diameter	14.00 MM
Short Style Spark Plug	No
Service Number	LTR6AHX
Washer Included	No
Grade Type	Performance
Hex Size	5/8" (16mm)
Insulator Height	2.07 IN
Reach	0.984 IN
Thread Diameter	0.551 IN
Insulator Material	Ceramic
Resistor Type	Yes
6648	0.0 IN
Ground Electrode Tip Material	Platinum
9459	No
9506	0.12 IN
9608	Fine Wire
9805	Mid Projection

Additional Information

Harmonized Tariff Code (HTS)	8511100000
Warranty Time UOM	MO
Warranty Time	2
Country of Origin (Primary)	JP
UPC	00087295912768
VMRS Code	033003005
UNSPSC	26101732

Part Interchanges

Fits Vehicles

Chevrolet Traverse Limited (2024)
Ford Transit Connect (2019-2023)
Ford EcoSport (2018-2022)
Lincoln Continental (2017-2020)
GMC Acadia Limited (2017)
Ford Transit-350 HD (2015-2024)
Ford Transit-350 (2015-2024)
Ford Transit-250 (2015-2024)
Ford Transit-150 (2015-2024)
GMC Canyon (2015-2016)
Chevrolet Colorado (2015-2016)
Chevrolet Impala Limited (2014-2016)
Ford Police Interceptor Utility (2013-2024)
Ford Police Interceptor Sedan (2013-2019)
Lincoln MKZ (2013-2016)
Cadillac ATS (2013-2015)
Cadillac XTS (2013-2019)
Lincoln MKS (2013-2016)
Ford Taurus (2013-2016)
Chevrolet Caprice (2012-2017)
Saab 9-4X (2011)
Lincoln MKT (2012-2019)
Ford Flex (2012-2019)
Chevrolet Captiva Sport (2012)
Chevrolet Impala (2012-2020)
Ford Focus (2012-2018)
Ford F-150 (2011-2023)
Lincoln MKX (2011-2018)
Ford Explorer (2011-2023)
Ford Edge (2011-2018)
Ford Mustang (2011-2019)
GMC Terrain (2010-2017)
Chevrolet Camaro (2010-2015)
Suzuki Grand Vitara (2009-2010)
Chevrolet Traverse (2009-2023)
Pontiac G8 (2008-2009)
Pontiac Torrent (2008-2009)
Chevrolet Malibu (2008-2012)
Chevrolet Equinox (2008-2017)
Saturn Vue (2008-2010)
Buick Enclave (2008-2024)
Saturn Outlook (2007-2010)
GMC Acadia (2007-2016)
Saturn Aura (2007-2009)
Suzuki XL-7 (2007-2009)
Pontiac G6 (2007-2009)
Buick Allure (2005-2008, 2010)
Mazda MX-5 Miata (2006-2015)
Cadillac STS (2005-2011)
Buick LaCrosse (2005-2008, 2010-2016)
Cadillac SRX (2004-2016)
Cadillac CTS (2004-2015)
Buick Rendezvous (2004-2006)
