(888) 312-8812 Login SignupCENTRIC 123.67005 C-Tek Standard Brake Drum
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 123.67005 Part Description
Manufacturer
Product Description

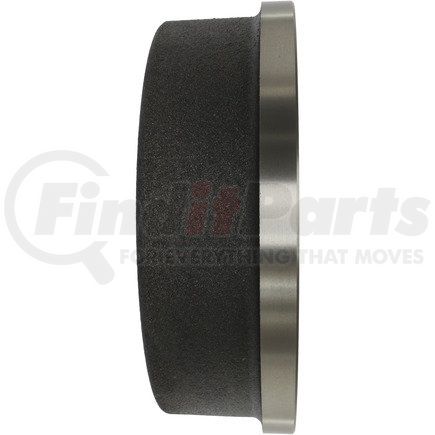

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 123.67005 Specifications
Product Attributes
| Weight [cntrc] Kgs | 6.364 |
| Weight [cntrc] Lbs | 14.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 90.678 |
| Hub Hole / Register [cntrc] In | 3.570 |
| Height [cntrc] Mm | 93.218 |
| Height [cntrc] In | 3.670 |
| Friction Surface Width [cntrc] Mm | 74.676 |
| Friction Surface Width [cntrc] In | 2.940 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 256.300 MM |
| Maximum Brake Diameter (Discard) | 10.090 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 293.878 MM |
| Outside Diameter | 11.570 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 16.764 MM |
| Mounting Hole Diameter | 0.660 IN |
| Nominal Drum Diameter | 254.000 MM |
| Nominal Drum Diameter | 10.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890140740 |
CENTRIC 123.67005 Cross References
| Brand | Part Number |
|---|---|
| 122.67005, F1FZ14290BN | |
| N/A | BD60625, E127-72-010, E128-72-010, 8919, 123.67005, 8919G, 4164160, 4267347, 7267347, 140510, PDR0510, 203191, 6401347, 765, AD8705, AD8705E, D2912, E8375, E12772010, 87248, X21635, BD1502, 2912, 2912R, 2912DGS, 78840005, 8840005, 36540027 |
| RAYBESTOS | 2912, 2912R |
CENTRIC 123.67005 Fits Vehicles
- Dodge W100 (1984-1985)
- Plymouth Trailduster (1980-1981)
- Dodge W150 (1980-1985)
- Dodge Ramcharger (1980-1983)
