CENTRIC 123.45019 Part Description
Manufacturer
Product Description

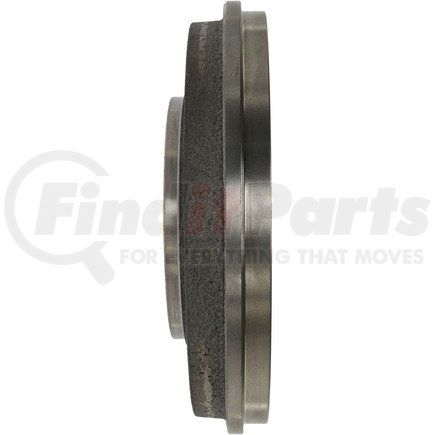

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
CENTRIC 123.45019 Specifications
Product Attributes
| Misc Holes [cntrc] | 3 |
| Weight [cntrc] Kgs | 4.545 |
| Weight [cntrc] Lbs | 10.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 114.300 |
| Bolt Circle Diameter [cntrc] In | 4.500 |
| Hub Hole / Register [cntrc] Mm | 72.050 |
| Hub Hole / Register [cntrc] In | 2.837 |
| Height [cntrc] Mm | 60.500 |
| Height [cntrc] In | 2.382 |
| Friction Surface Width [cntrc] Mm | 37.200 |
| Friction Surface Width [cntrc] In | 1.465 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 230.100 MM |
| Maximum Brake Diameter (Discard) | 9.060 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 270.200 MM |
| Outside Diameter | 10.638 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 13.000 MM |
| Mounting Hole Diameter | 0.512 IN |
| Nominal Drum Diameter | 228.600 MM |
| Nominal Drum Diameter | 9.000 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 805890140603 |
CENTRIC 123.45019 Cross References
| Brand | Part Number |
|---|---|
| 122.45019, F1EZ14D202J | |
| MAGMA PRODUCTS | PMU20091 |
| N/A | BD125292, 52-125292, 52125292, 0832592, 3520, BD3520, 63 74 280, GA2Y26251, 116601, 3520G, GA2Y26251A, F32Z1126A, F32Z1126B, 140632, PDR0632, 202200, 6401498, 1075, JBD353, JBD353E, D9428, 87544, YH140632, X21846, BD1607, 9544, 9544R, 9544DGS, 8814019, 36580016 |
| PRONTO | BD3520 |
| RAYBESTOS | 9544, 9544R |
| WAGNER | BD125292 |
CENTRIC 123.45019 Fits Vehicles
- Mazda 626 (1993-2002)
- Mazda MX-6 (1993-1997)
- Ford Probe (1993-1997)
