CENTRIC 122.76004 Part Description
Manufacturer
Product Description

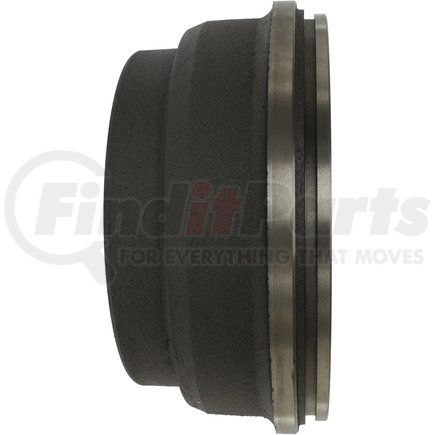

Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise
CENTRIC 122.76004 Specifications
Product Attributes
| Weight [cntrc] Kgs | 16.364 |
| Weight [cntrc] Lbs | 36.000 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 203.200 |
| Bolt Circle Diameter [cntrc] In | 8.000 |
| Hub Hole / Register [cntrc] Mm | 155.956 |
| Hub Hole / Register [cntrc] In | 6.140 |
| Height [cntrc] Mm | 151.638 |
| Height [cntrc] In | 5.970 |
| Friction Surface Width [cntrc] Mm | 86.360 |
| Friction Surface Width [cntrc] In | 3.400 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 301.500 MM |
| Maximum Brake Diameter (Discard) | 11.870 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 344.932 MM |
| Outside Diameter | 13.580 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 21.590 MM |
| Mounting Hole Diameter | 0.850 IN |
| Nominal Drum Diameter | 288.800 MM |
| Nominal Drum Diameter | 11.370 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Country of Origin (Primary) | JP |
| UPC | 805890038863 |
CENTRIC 122.76004 Cross References
| Brand | Part Number |
|---|---|
| 97068628, 8970686280 | |
| N/A | E127-81-009, 24247, 8970686280, 8824004, 8824004.00000, JBD514, 36537006, E12781009, 123.76004, 97068628 |
CENTRIC 122.76004 Fits Vehicles
- GMC W4500 Forward (1993)
- Chevrolet W4500 Tiltmaster (1993)
- Isuzu NPR (1993)
