CENTRIC 122.45002 Part Description
Manufacturer
Product Description
Centric Premium Brake Drum
Features & Benefits
- OE style castings ensure superior performance and extended service life. Machined finishes provide cleaner appearance through wheels. Precision machined friction surfaces ensure smooth operation and reduced noise

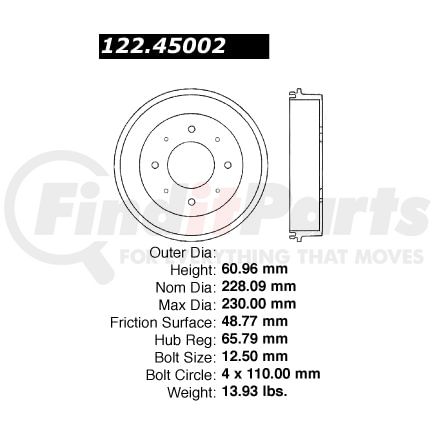

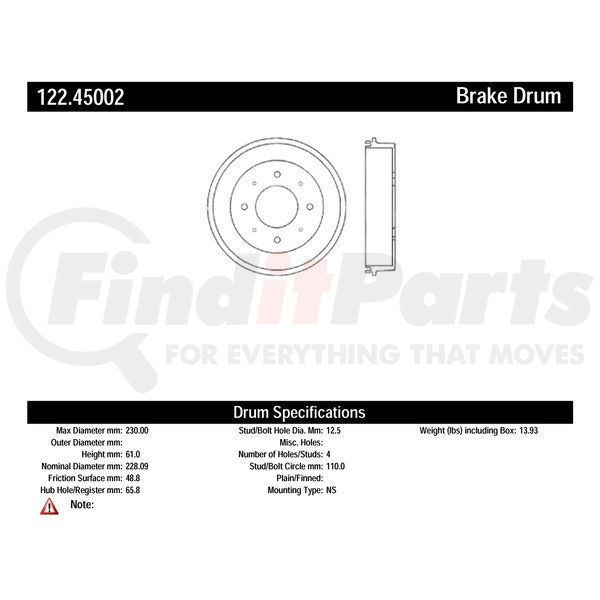

CENTRIC 122.45002 Specifications
Product Attributes
| Weight [cntrc] Kgs | 6.332 |
| Weight [cntrc] Lbs | 13.930 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 110.000 |
| Bolt Circle Diameter [cntrc] In | 4.331 |
| Hub Hole / Register [cntrc] Mm | 65.790 |
| Hub Hole / Register [cntrc] In | 2.590 |
| Height [cntrc] Mm | 60.960 |
| Height [cntrc] In | 2.400 |
| Friction Surface Width [cntrc] Mm | 48.770 |
| Friction Surface Width [cntrc] In | 1.920 |
| Product Grade [cntrc] | Premium |
| Maximum Brake Diameter (Discard) | 230.000 MM |
| Maximum Brake Diameter (Discard) | 9.055 IN |
| Bolt Hole Quantity | 4 |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 12.500 MM |
| Mounting Hole Diameter | 0.492 IN |
| Nominal Drum Diameter | 228.000 MM |
| Nominal Drum Diameter | 8.976 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 805890032427 |
CENTRIC 122.45002 Cross References
| Brand | Part Number |
|---|---|
| N/A | 24223, 101126251A, 8814002, JBD146, 36580002, 1057, 100946, 852726251A, 123.45002 |
CENTRIC 122.45002 Fits Vehicles
- Mazda RX-4 (1974-1976)
- Mazda RX-3 (1976)
