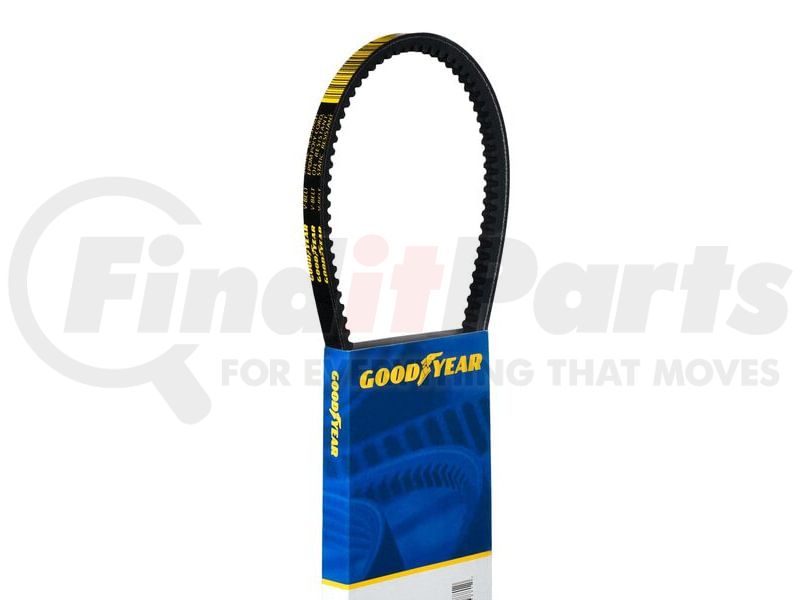

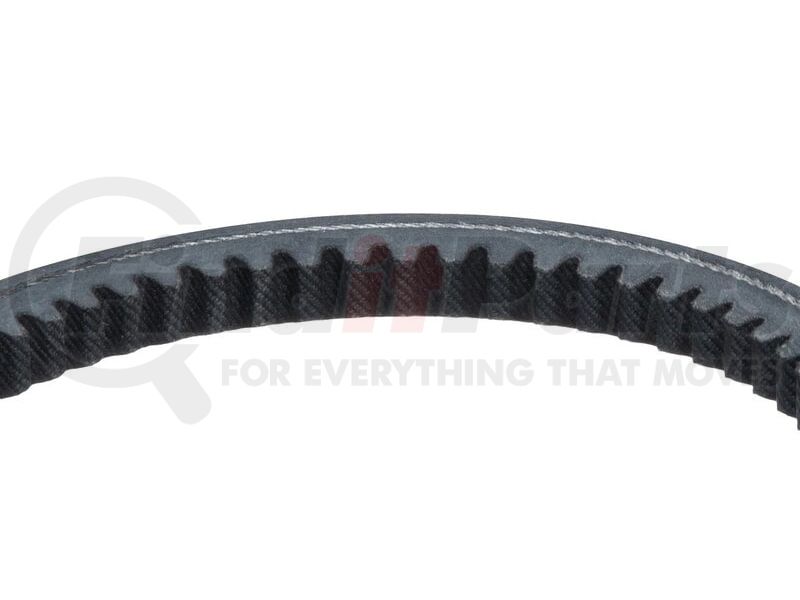

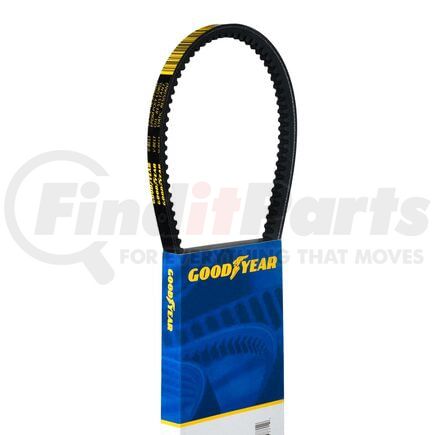

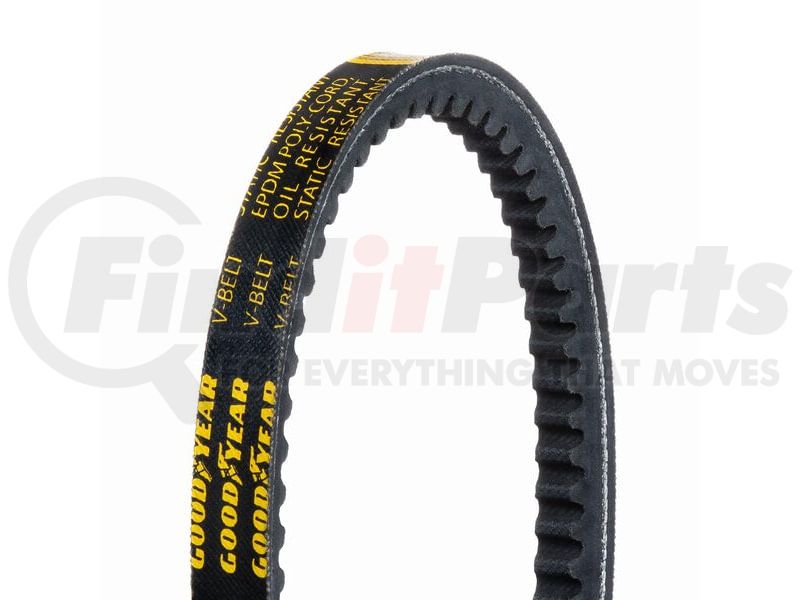

GOODYEAR BELTS part description

Product Description

V-Belt

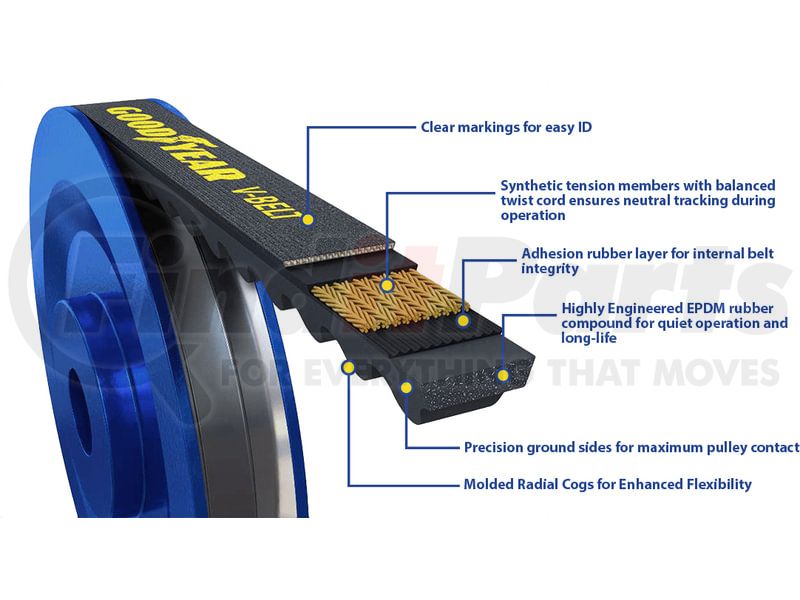

Features & Benefits

  • Meets or Exceeds OEM Specifications
  • Long-life EPDM Rubber Compound
  • Radial Cogged design reduces bending resistance and improves power transmission efficiency, leading to enhanced performance and longevity, ensuring the longevity of automotive engine systems.
  • Radial Cog design to eliminate stress risers that can cause cracking
  • Polyester Cord Reinforcement, providing superior tensile strength and resistance to stretching, ensuring reliable power transmission and reduced maintenance.
  • Proprietary rubber formulation for quiet operation
  • Precision ground sides helps reduce noise and vibration in automotive engine systems, enhancing overall driving comfort and smoothness.
  • Precision ground sides for maximum pulley contact
  • Temperature Resistance, suitable for automotive applications, these belts maintain their performance even in extreme operating conditions.
  • High strength tensile cords designed for minimal tension decay and low maintenance
  • Limited Lifetime Warranty

Product Attributes

V-belt Profile 11A
Top Width (mm) 11.5 MM
Top Width (in) 0.453 IN
Thickness (mm) 8 mm
Thickness (in) 0.315 In
Rib Angle 36⁰ DD
Profile Series 15
Outside Circumference 992 mm
Outside Circumference 39.05 in
Effective Length 986 mm
Effective Length 38.8 in
Cord Material Polyester
Item Weight (lbs) 0.18 LB
Item Weight (kg) 0.08 KG
Belt Material EPDM
Angle 36 DD
Color Black
Construction Cogged
Cross Section Designation 11A
Grade Type OE Performance
9837 Yes
Profile Type 15
Sae Standard J636
9453 J637
Strand Quantity 1
Thickness 0.315 IN
Thickness 8 MM
Top Cogged No
Top Width 0.453 in
Top Width 11.5 mm
Type Automotive V-Belt

Additional Information

Stock Status S
Warranty Time 1
Warranty Special 1 Year Limited Warranty
Warranty Time UOM YR
Warranty Special UOM TX
Country of Origin (Primary) IN
Harmonized Tariff Code (HTS) 4010390000
Harmonized Tariff Code (Schedule B) 4010390000
Canadian Harmonizing Tariff Code 4010390000
UPC 00195199099468
VMRS Code 065005003
UNSPSC 26111801

Part Interchanges

Fits Vehicles

  • Suzuki Aerio (2002)
  • Mercury Montego (1974)
  • Ford M-400 (1973)
  • Ford M-450 (1974)
  • Mercury Zephyr (1978-1980)
  • Mercury Monarch (1975-1976)
  • Mercury Comet (1974-1977)
  • Mercury Capri (1980)
  • Ford Mustang II (1974-1976)
  • Ford Mustang (1980)
  • Ford Maverick (1974-1977)
  • Ford Granada (1975-1976)
  • Ford Fairmont (1978-1980)
  • Ford F-350 (1974-1976)
  • Ford F-250 (1974-1976)
  • Ford F-150 (1975-1976)
  • Ford F-100 (1974-1976)
