CENTRIC part description

Product Description

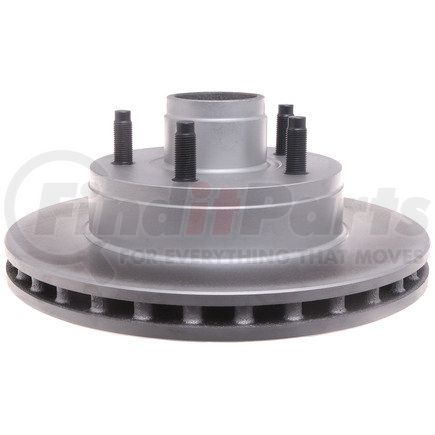

Centric GCX Rotor with Full Coating

Product Attributes

Inner Seal # [cntrc] 417.61003
Weight [cntrc] Lbs 19.000
California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Weight [cntrc] Kgs 8.640
Misc Holes [cntrc] 0
Disc Mounting [cntrc] Hub & Rotor
Inner Bearing # [cntrc] 410.91005
Outer Bearing # [cntrc] 410.91002
Vane Style [cntrc] Straight
Product Grade [cntrc] Premium
Discard Thickness 24.500 MM
Discard Thickness 0.965 IN
Nominal Thickness 26.100 MM
Nominal Thickness 1.028 IN
Disc Finish Fully Coated
Hat Finish Coated
Stud Thread Diameter 0.500 IN
Overall Height 108.000 MM
Overall Height 4.252 IN
ABS Tone Ring Included Yes
Surface Type Smooth
54 261.000 MM
Rotor Outside Diameter 10.276 in
Solid Or Vented Type Rotor Vented
Bolt Thread Pitch 20.000 IN
Bearings Included No
Center Hole Diameter 63.700 MM
Center Hole Diameter 2.508 IN
Mounting Bolt Hole Circle Diameter 114.300 MM
Mounting Bolt Hole Circle Diameter 4.500 IN
Stud/Lug Hole Quantity 5

Fits Vehicles

  • Mazda B4000 (1995-1997)
  • Mazda B2300 (1995-1997)
  • Mazda B3000 (1995-1997)
  • Ford Ranger (1995-1997)
