CENTRIC part description

Product Description

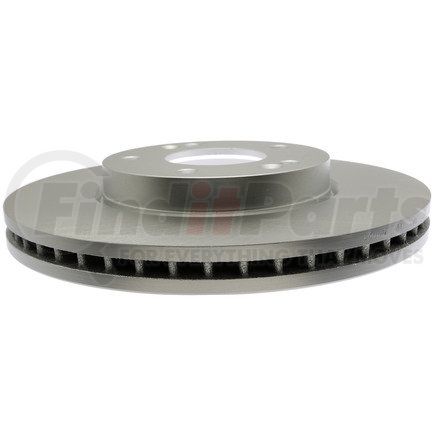

Centric GCX Rotor with Full Coating

Product Attributes

California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Weight [cntrc] Lbs 16.550
Misc Holes [cntrc] 2
Product Grade [cntrc] Premium
Weight [cntrc] Kgs 7.520
Vane Style [cntrc] Straight
Disc Mounting [cntrc] Floating
Discard Thickness 0.945 IN
Discard Thickness 24.000 MM
Nominal Thickness 26.000 MM
Nominal Thickness 1.024 IN
Disc Finish Fully Coated
Hat Finish Coated
Overall Height 47.300 MM
Overall Height 1.862 IN
Outside Diameter 280.000 MM
Outside Diameter 11.024 IN
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Bearings Included No
Center Hole Diameter 2.717 IN
Center Hole Diameter 69.000 MM
Mounting Bolt Hole Circle Diameter 114.300 MM
Mounting Bolt Hole Circle Diameter 4.500 IN
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 12.300 MM
Stud/Lug Hole Diameter 0.484 IN

Fits Vehicles

  • Kia Rio (2019-2020)
  • Kia Rondo (2007-2010)
