Centric 320.47025F - Centric GCX Rotor with Full Coating
$5499
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

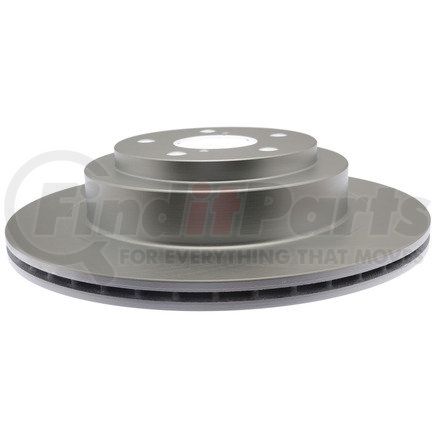

Centric GCX Rotor with Full Coating
Product Attributes
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 5.450 |
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Lbs | 12.000 |
| Max Pb Drum Dia [cntrc] In | 6.732 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Max Pb Drum Dia [cntrc] Mm | 171.000 |
| Disc Mounting [cntrc] | Floating / DIH |
| Discard Thickness | 0.630 IN |
| Discard Thickness | 16.000 MM |
| Nominal Thickness | 17.900 MM |
| Nominal Thickness | 0.705 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 67.500 MM |
| Stud/Lug Hole Diameter | 0.504 IN |
| Stud/Lug Hole Diameter | 12.800 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Center Hole Diameter | 2.283 IN |
| Center Hole Diameter | 58.000 MM |
| Bearings Included | No |
| Nominal Drum Diameter | 6.693 IN |
| Nominal Drum Diameter | 170.000 MM |
| Solid Or Vented Type Rotor | Vented |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 289.600 MM |
| Outside Diameter | 11.402 IN |
| Overall Height | 2.657 IN |
Fits Vehicles
- Subaru Impreza (2006-2007)
- Subaru Legacy (2005-2009)
