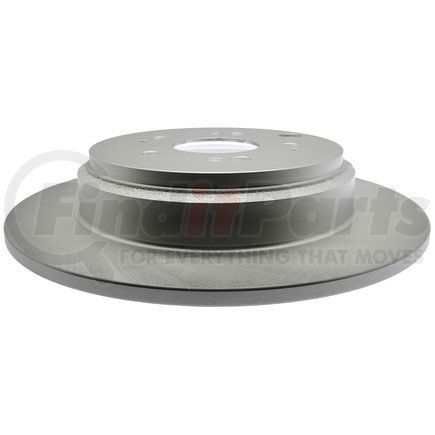

Centric 320.40072F - Centric GCX Rotor with Full Coating
$5999
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating
Product Attributes
| Max Pb Drum Dia [cntrc] In | 8.307 |
| Weight [cntrc] Lbs | 14.750 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Max Pb Drum Dia [cntrc] Mm | 211.000 |
| Misc Holes [cntrc] | 5 |
| Hat Id [cntrc] In | 8.236 |
| Weight [cntrc] Kgs | 6.700 |
| Disc Mounting [cntrc] | Floating / DIH |
| Hat Id [cntrc] Mm | 209.200 |
| Stud/Lug Hole Diameter | 0.575 IN |
| Stud/Lug Hole Diameter | 14.600 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Center Hole Diameter | 2.760 IN |
| Center Hole Diameter | 70.100 MM |
| Bearings Included | No |
| Nominal Drum Diameter | 210.000 MM |
| Nominal Drum Diameter | 8.268 IN |
| Solid Or Vented Type Rotor | Solid |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 334.000 MM |
| Outside Diameter | 13.150 IN |
| Overall Height | 2.512 IN |
| Overall Height | 63.800 MM |
| Hat Finish | Coated |
| Disc Finish | Fully Coated |
| Nominal Thickness | 11.000 MM |
| Nominal Thickness | 0.433 IN |
| Discard Thickness | 0.354 IN |
| Discard Thickness | 9.000 MM |
Fits Vehicles
- Honda Odyssey (2011-2017)
- Acura MDX (2007-2013)
- Acura ZDX (2010-2013)
- Honda Pilot (2009-2015)
