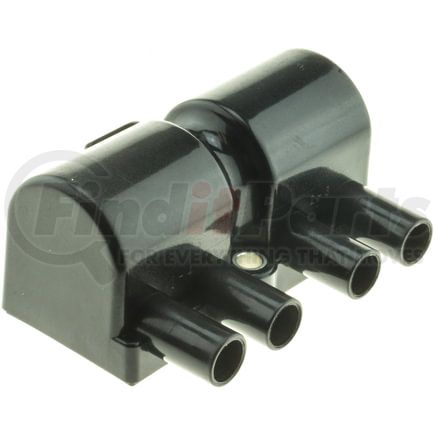

Motorad 3IC184 - Ignition Coil
$3399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MOTORAD part description
Product Description
Ignition Coil
Features & Benefits
- Primary and secondary windings made with ETP grade copper to provide superior temperature protection and voltage conductivity.
- Graphite-infused platinum connections resist corrosion and offer superior conductivity and durability.
- Heat resistant magnet produces max voltage output at all engine speeds.
- Preapplied dielectric grease for easy installation.
Product Attributes
| Terminal Type | Pin |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Product Color | Black, White |
| Quantity Per Application | 1 |
| Hazardous Material | No |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Voltage | 12 VDC |
| Requires External Resistor | Yes |
| Grade Type | Regular |
| Mounting Bracket Included | No |
| Oe Replacement | YES |
| Oil Filled | No |
| Secondary Resistance | 2900-9100 Ohms |
| Primary Resistance | 400-1000 Ohms |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 3 |
| Terminal Quantity | 4 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Mounting Bracket Included | No |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8511300080 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8511300080 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | TX |
| UPC | 00055644688312 |
Part Interchanges
Fits Vehicles
- Fiat Palio (2009, 2011)
- Fiat Idea (2008)
- Fiat Strada (2007-2011)
- Chevrolet Nuevo Aveo (2018)
- Chevrolet Beat (2018-2021)
- Chevrolet Spark Classic (2016-2017)
- Chevrolet Matiz (2011-2015)
- Chevrolet Spark (2011-2015)
- Chevrolet Meriva (2004)
- Pontiac Matiz (2004-2010)
- Chevrolet Chevy Pickup (2003)
- Chevrolet Optra (2008-2010)
- Chevrolet Tracker (2005-2008)
- Chevrolet Corsa (2003-2008)
- Chevrolet Tornado (2004-2011)
- Chevrolet Chevy Monza (2003)
- Chevrolet Chevy (2001-2012)
- Pontiac Wave5 (2005-2007)
- Pontiac G3 (2007)
- Chevrolet LUV (1998-2005)
- Chevrolet Aveo5 (2006-2008)
- Pontiac Wave (2005-2007)
- Suzuki Reno (2005-2008)
- Suzuki Forenza (2004-2008)
- Chevrolet Aveo (2004-2008, 2010-2020)
- Daewoo Nubira (2000-2002)
