RAYBESTOS 980565R Part Description
Manufacturer
Product Description

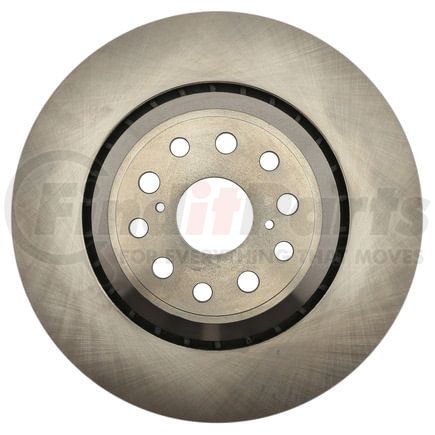

Raybestos R-Line Brake Rotor
Application Summary
2017-2007 Lexus LS460 Front Right, 2023-2018 Lexus LS500 Front Right, 2016-2008 Lexus LS600h Front Right, 2023-2018 Lexus LS500h Front Right
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980565R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.441 IN |
| Center Hole Diameter | 62 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.221 IN |
| Discard Thickness | 31 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.094 IN |
| Inside Diameter | 231 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.646 IN |
| Mounting Bolt Hole Diameter | 16.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.339 IN |
| Nominal Thickness | 34 MM |
| Outside Diameter | 14.055 IN |
| Outside Diameter | 357 MM |
| Overall Height | 2.37 IN |
| Overall Height | 60.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Diameter | 0.646 IN |
| Stud/Lug Hole Diameter | 16.4 MM |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213372519 |
RAYBESTOS 980565R Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 200467, YH200467, YH200467C, YH200467P |
| AutoZone | 44613, 44613DG |
| Bendix | PRT6135 |
| Bosch | 50011497 |
| BrakeBest | 50011497, 980565, 980565RGS |
| CENTRIC | 121.44151 |
| Centric Parts | 120.44151, 120.44151CRY, 121.44151, 126.44151CSR, 126.44151SR, 127.44151R, 320.44151 |
| Dura Corp | BR31467, BR901152 |
| DuraGo | BR901152 |
| Lexus | 4351250260 |
| MAGMA PRODUCTS | PMR563094 |
| Newtek Automotive USA | 31467 |
| Promax | 14-31467 |
| Qualis | 44613 |
| Toyota | 4351250250 |
| UAP | 31467 |
| WORLDPAC | 1407-75788, 1427-731923 |
| Wagner Brake | BD180171, BD180398 |
| Winhere | 6621092 |
RAYBESTOS 980565R Fits Vehicles
- Lexus LS500 (2018-2024)
- Lexus LS500h (2018-2024)
- Lexus LS600h (2008-2016)
- Lexus LS460 (2007-2017)
