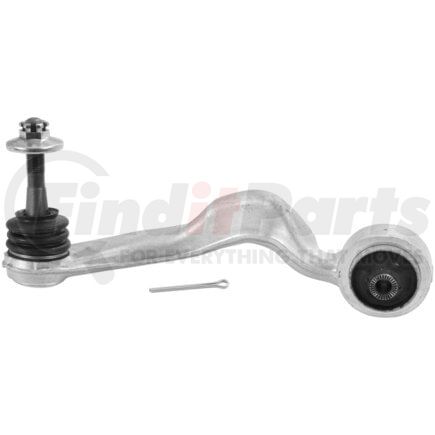

(888) 312-8812 Login SignupDELPHI TC7557 Control Arm and Ball Joint Assembly
Tap to view 1 more
$5349
Limited availability at this price!
In Stock
Get it by Friday, Dec 19
DELPHI TC7557 Part Description
DELPHI TC7557 Specifications
Product Attributes
| Position(s) | Front Left Upper Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Greaseable | No |
| Control Arm Maximum Width | 2.953 IN |
| Control Arm Maximum Width | 75.00 MM |
| Control Arm Color | Gray |
| Ball Joint Stud Length | 1.791 IN |
| Ball Joint Stud Length | 45.50 MM |
| Control Arm Maximum Length | 10.866 IN |
| Control Arm Maximum Length | 276.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604363836 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC7557 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 102-7636 |
| Toyota | 48630-59135 |
| N/A | CMS861077, CB64097, 522785 |
DELPHI TC7557 Fits Vehicles
- Lexus LS460 (2007-2017)
