NTN part description

Product Description

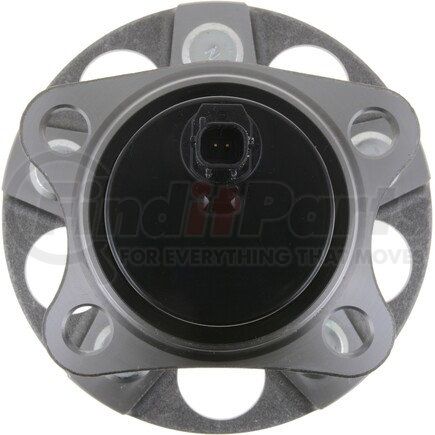

OE form, fit & function wheel hub unit.

Features & Benefits

  • All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
  • Forged-steel construction provides the toughness and durability required for even the harshest applications.
  • Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
  • Application-specific components to ensure proper connection and performance of the ABS module and sensors.
  • Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
  • Application-specific engineering reduces noise, vibration and harshness (NVH).

Product Attributes

Flange Bolt Hole Quantity 4
Wheel Pilot Diameter 2.160 IN
Brake Pilot Diameter 2.360 IN
Wheel Stud Quantity 5
Flange Shape Modified Rectangular
Anti Lock Braking System Yes
Anti Lock Braking System Type Encoder
Drive Type Non-driven
Flange Offset 2.120 IN
9555 3.940 IN
Knuckle Bolt Circle Diameter (Inches) 3.740
Knuckle Bolt Circle Diameter (Millimeters) 95.0
Knuckle Bolt Hole Size 12.5mm
Wheel Stud Size M12X1.5 MM

Additional Information

Country of Origin (Primary) KR
Harmonized Tariff Code (Schedule B) 8708995800
Warranty Time 12
Warranty Time UOM MO
UPC 662810618365

Part Interchanges

Fits Vehicles

  • Toyota Prius Plug-In (2012-2015)
  • Toyota Prius (2010-2015)
