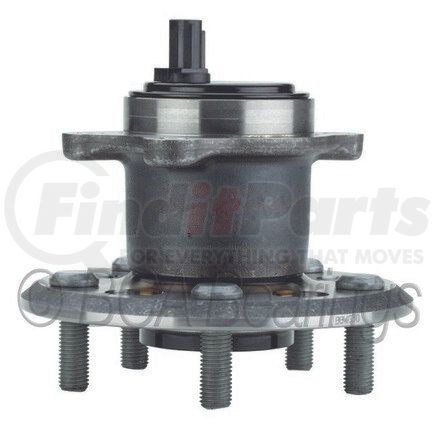

(888) 312-8812 Login SignupOE form, fit & function wheel hub unit.
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Wheel Pilot Diameter | 2.362 IN |
| Brake Pilot Diameter | 2.441 IN |
| Wheel Stud Quantity | 5 |
| Flange Shape | Modified Rectangular |
| Drive Type | Non-driven |
| Bearing Type | Ball |
| Flange Offset | 2.657 IN |
| Flange Diameter | 152 MM |
| Bolt Circle Diameter | 4.500 IN |
| Bearing Generation | Gen 3 |
| Knuckle Bolt Circle Diameter (Inches) | 3.898 |
| Knuckle Bolt Circle Diameter (Millimeters) | 99.0 |
| Knuckle Bolt Hole Size | M10X1.25 |
| Knuckle Pilot Hole Diameter | 2.913 IN |
| Wheel Stud Size | M12X1.5 MM |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8482105016 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 662810610154 |
| Brand | Part Number |
|---|---|
| Autopart International | 1411248452 |
| Beck/Arnley | 0516382 |
| CENTRIC | 407.44036 |
| GMB | 7703100 |
| Lexus | 4246006070 |
| MOOG Chassis Products | 512454 |
| Mevotech | H512454 |
| Raybestos Brakes | 712454 |
| SKF | BR930842 |
| Schaeffler | 102376 |
| Timken | HA590429 |
| Toyota | 4246006070 |
