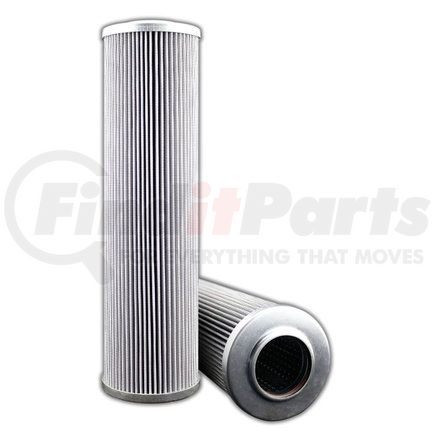

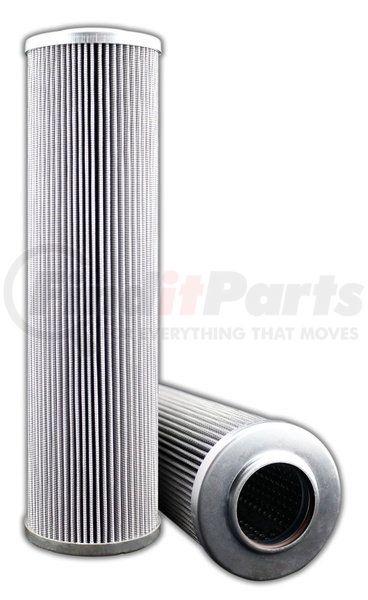

Main Filter MF0897215 - hydraulic filters
- Part Number
- MF0897215
- Manufacturer
- MAIN FILTER
- Description
-
hydraulic filters
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
MAIN FILTER part description
Technical Specifications
| Outside Diameter Top | 3.563 |
| Inide Diameter Top | 1.898 |
| Outside Diameter Bottom | 3.563 |
| Collapse Pressure | 435 |
| Operating Temp Min F | -13 |
| Operating Temp Max F | 248 |
| Capacity gr | 96.3634225 |
| Filter Area sq in | 1028 |
| Flow Direction | Outside-In |
| Gasket Material | Viton |
| Fluid Type | HH / HL / HM / HV |
| Beta Ratio 1 | 200/5.4 |
| Beta Ratio 2 | 1000/7.7 |
| Micron 1 | 5 |
