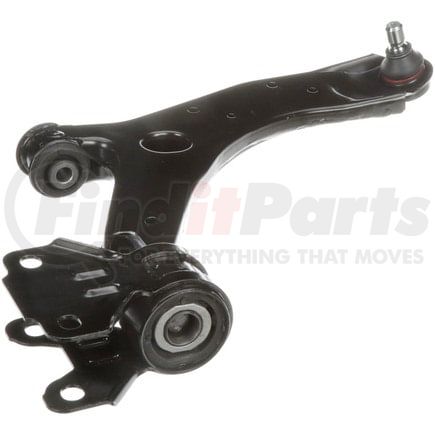

(888) 312-8812 Login SignupDELPHI TC6740 Control Arm and Ball Joint Assembly
Tap to view 13 more
$13649
Limited availability at this price!
In Stock
Get it by Monday, Dec 29
DELPHI TC6740 Part Description
DELPHI TC6740 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Grooved |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 16.339 IN |
| Control Arm Maximum Width | 415.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.71 IN |
| Ball Joint Thread Diameter | 18.0 MM |
| Ball Joint Stud Length | 2.283 IN |
| Ball Joint Stud Length | 58.00 MM |
| Control Arm Maximum Length | 20.079 IN |
| Control Arm Maximum Length | 510.00 MM |
| Bushing Material | Rubber |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604333501 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC6740 Part Interchanges
| Brand | Part Number |
|---|---|
| Mazda | B39D-34-300A |
| MOOG Chassis Products | RK621461 |
| N/A | B39D-34-300, BBM2-34-300, BBM2-34-300A, CMS76152, CB65094, 521-998, GS76152 |
DELPHI TC6740 Fits Vehicles
- Mazda 3 (2010-2013)
DELPHI TC6740 Customer Reviews
No reviews yet
Be the first to review this product!
