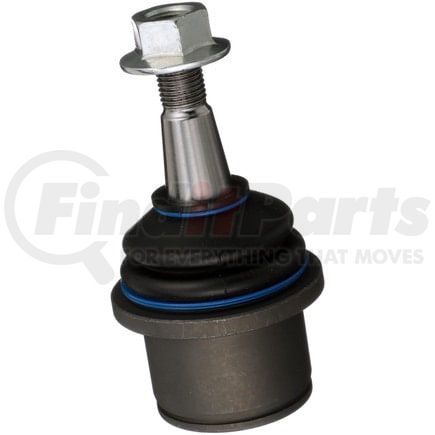

Delphi TC7510 - Ball Joint
$1999
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 64.50 MM |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 64.5 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Height | 119.70 MM |
| Nuts Included | Yes |
| Adjustable | No |
| Greasable | No |
| 839 | 8mm |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 15.6 MM |
| Stud Tapered End 1 Diameter | 21.8 MM |
| Stud Thread Pitch | 1.5 MM |
| Maximum Outside Diameter | 2.540 IN |
| Stud Thread Diameter | 0.55 IN |
| Height | 4.710 IN |
| 9212 | 0.61 IN |
| 9213 | 0.86 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708806590 |
| Harmonized Tariff Code (HTS) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604352410 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Kia K900 (2015-2017)
- Hyundai Equus (2011-2016)
- Hyundai Genesis (2009-2014)
