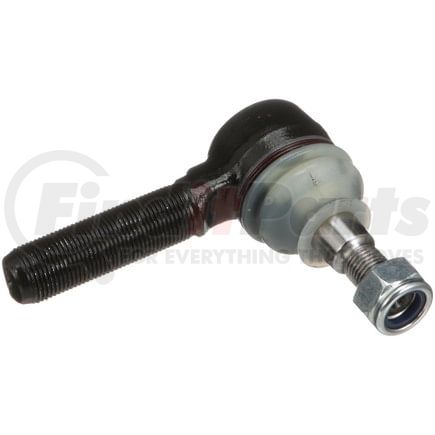

Name: Delphi TA5576 Tie Rod End
SKU: ta5576
Price: 23.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Right
Item Grade	Standard Replacement
Length	122.00 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	43 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.787 IN
End 2 Thread Diameter	20.00 MM
Height	88.60 MM
Housing Material	Steel
36	0.787 IN
Tube Diameter	20.00 MM
Adjustable	No
Greasable	No
Weight	1.34 lb
Cone Outside Diameter	18.90 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Counterclockwise (Left)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
Length Stud Center to End	3.976 IN
Length Stud Center to End	101.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.551 IN
End 1 Thread Diameter	14.00 MM
Shank Length	18.90 MM
Stud Length	18.90 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.744 IN
Stud Length	0.744 IN
662	0.744 IN

Additional Information

Harmonized Tariff Code (HTS)	8708947550
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708947550
Country of Origin (Primary)	TR
UPC	00689604315941
VMRS Code	015004019
UNSPSC	25174205

Part Interchanges

Mitsubishi MW033300

Fits Vehicles

Mitsubishi Fuso FE (1987-1988)
