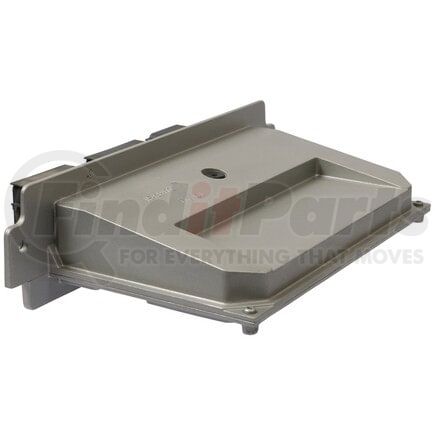

Name: A-1 Cardone 78-1164F Engine Control Module
SKU: 781164f
Price: 333.49 USD
Availability: InStock

A-1 CARDONE part description

Product Description

Engine Control Module

Application Summary

Ford Escape 2011-10, Fusion 2011-10; Mercury Mariner 2011-10, Milan 2011-10

Features & Benefits

Tested with automated computer equipment or bench-tested, depending on application, to ensure functionality.
Re-soldering of critical components ensures superior electrical connections. This prevents intermittent failures and leads to longer product life.
On-car vehicle validation is done to test durability and performance.
As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.

Engine Control Computer, ECC, ECM, Engine Control Module, Computer, Module

Product Attributes

Terminal Quantity	70;70;50
Product Condition	Remanufactured
Mounting Hardware Included	No
Housing Material	Aluminum
Mounting Hole Quantity	2
Removable Prom	No
Connector Quantity	3
E-waste	Yes
Connector Shape	Rectangle;Square
FAQs	Yes, there's a 10 minute procedure utilizing a Tech 2 Scanner and a GM Terminal Subscription. There is also a 30 minute manual procedure that can be done without a scanner. Refer to an OE approved service manual for either option.
Features and Benefits	Tested with automated computer equipment or bench-tested, depending on application, to ensure functionality.
Flash Programming Required	Yes
Flashable	Yes
Connector Gender	Female
Connector Quantity	3
Connector Shape	Rectangle; Square
Flash Programming Required	Yes
Flashable	Yes
Height	3.093 IN
Height	78.56 MM
Length	7.43 IN
Length	188.72 MM
Mounting Hardware Included	No
Mounting Hole Quantity	2
Removable PROM	No
Terminal Gender	Male
Terminal Quantity	190
Terminal Type	Pin
Width	259.33 MM
Width	10.21 IN
Package Contents	Module; Instruction Sheet
Contains Electronic Components	Circuit Board
Does it require SDS	No
Is Item A Chemical	No
Is Or Contains A Battery	No
Is Or Contains A Bulb	No
Is Prop Sixty Five Affected	No
Is the item CARB affected	No
FAQ_Q1	What’s the difference between an ECM and a PCM?
FAA_A1	“ECM” stands for Electronic Control Module. “PCM” stands for Powertrain Control Module. Both the ECM and PCM control the engine; however, the PCM also has control over the transmission.
FAQ_Q2	Do I have to transfer anything from my original ECM/PCM?
FAA_A2	Some GM applications have a knock module that must be transferred to the replacement module. Some older Ford applications have a calibration module that must be transferred to the replacement module.
FAQ_Q3	Do all Ford vehicles require a Passive Anti-Theft System (P.A.T.S) reset?
FAA_A3	No, not all Ford vehicles require PATS reset. Check the PATS chart found on the O.E. Manufacturer’s Service site for your application.
FAQ_Q4	The replacement PCM for a Ford vehicle won’t start the vehicle. Why?
FAA_A4	Ensure that the PCM was properly flash programmed for the vehicle. Also note whether the vehicle is equipped with the Ford "passive anti-theft system", which requires an on-car relearn.
FAQ_Q5	What steps should I take to ensure the original PCM is causing the issue?
FAA_A5	Prior to replacing the original ECM/PCM, the installer should determine what caused the original to fail. Common causes of failures are: poor grounds and power, a bad wiring harness and short-circuited solenoids/relays.
FAQ_Q6	Do GM vehicles have a passive anti-theft system?
FAA_A6	Yes, most GM vehicles have a VATS, Pass Key or Pass Lock anti-theft system.
FAQ_Q7	Do I need a scanner to reset the anti-theft system
FAA_A7	Not necessarily. There is a 30-minute manual procedure that can be done without a scanner. Refer to your O.E. manufacturer’s approved service manual for details.
FAQ_Q8	Do all Chrysler Power Train Control Modules (PCM) need VIN programming?
FAA_A8	Chrysler models 1996 and newer will need to be VIN programmed.
FAQ_Q9	What are the most common symptoms of a bad PCM?
FAA_A9	Check Engine Light staying on after resetting, engine turning off for no reason, loss of spark, loss of fuel injection, loss of pulse on fuel pump, intermittent starting problems.

Additional Information

Remanufactured Part	Y
Warranty Distance	18000
Warranty Distance UOM	DH
Warranty Special UOM	TX
Warranty Time	12
Warranty Time UOM	MO
Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8543700000
Harmonized Tariff Code (Schedule B)	8543709665
Harmonized Tariff Code (HTS)	8543709860
UPC	00884548305434

Part Interchanges

Fits Vehicles

Ford Escape (2010-2011)
Mercury Mariner (2010-2011)
Mercury Milan (2010-2011)
Ford Fusion (2010-2011)
