BILSTEIN 25-284522 Part Description
Manufacturer
Product Description

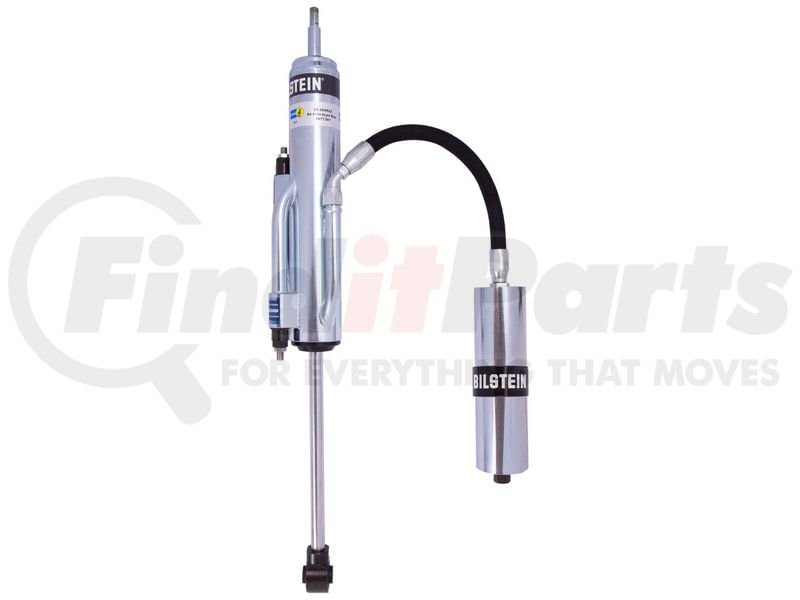

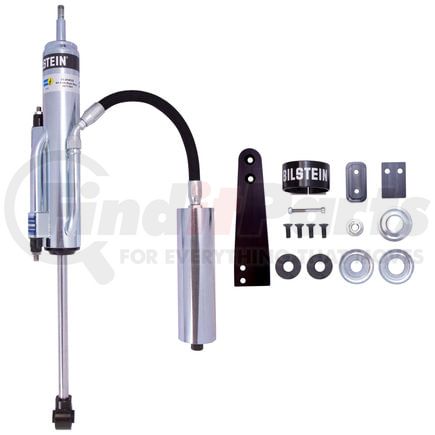

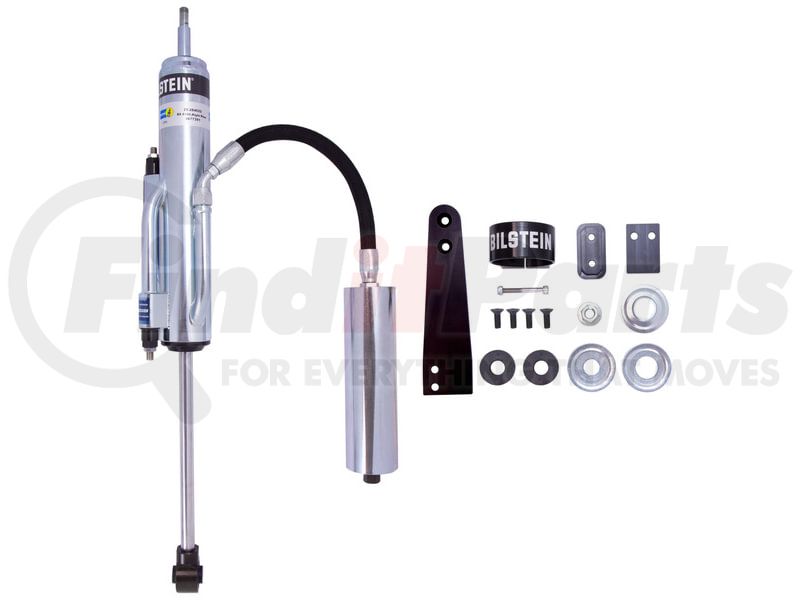

B8 8100 (Bypass) - Shock Absorber
Application Summary
Toyota Tundra 2021-2007
Features & Benefits
- Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression
- Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments
- 60mm large bore hard anodized aluminum piston offers a greater range of damping control and delivers exceptional long-term durability
BILSTEIN 25-284522 Specifications
Product Attributes
| Adjustable Damping | Double Adjustable – Compression and Rebound |
| Body Design | Bypass Body (Non-Coilover) |
| Body Diameter (id) | 60mm |
| Boot Included | No |
| Collapsed Length (in) | 15.75 |
| Collapsed Length (mm) | 400.0 |
| Extended Length (in) | 25.88 |
| Extended Length (mm) | 657.4 |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Eye 12.4mm |
| RESERVOIR | Yes |
| Series | B8 8100 (Bypass) |
| Spring Seat Included | No |
| Title | Bilstein Shock Absorbers |
| Upper Mount Type | Stem |
| Segment | Light Truck |
| Parttype | Shocks / Struts |
| Prop 65 (Y/N) | Y |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | USA SDS_Shock_Air Spring_V2_EN.pdf |
| Refurbished Part | N |
| Remanufactured Part | N |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| UPC | 00651860839400 |
BILSTEIN 25-284522 Fits Vehicles
- Toyota Tundra (2007-2021)
BILSTEIN 25-284522 Customer Reviews
No reviews yet
Be the first to review this product!
BILSTEIN 25-284522 Manufacturer Information
About BILSTEIN Of America
Founded in 1873, BILSTEIN is a world leading manufacturer of monotube gas pressure shock absorbers. With their main headquarters located in Germany, BILSTEIN is an original equipment supplier to BMW, Jaguar, Mercedes-Benz, Porsche, GM, Chrysler, Ford, Toyota and many others. Today, BILSTEIN Aftermarket and Motorsports has grown to nearly 630 employees located in three locations around the United States and distributes more than 3,500 part numbers into the U.S. aftermarket. BILSTEIN operates within ThyssenKrupp Component Technologies Group.
