WABCO part description

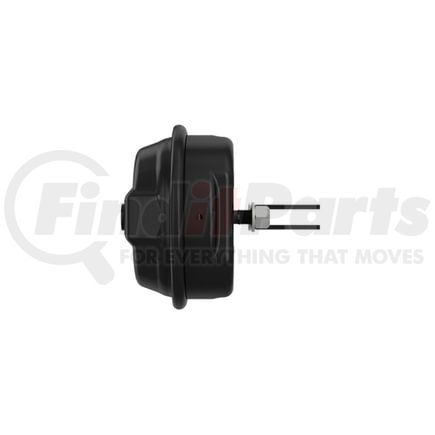

Brake Chamber 30

Product Attributes

Weight 0.0022046
Clevis Pins 12.9 mm
Push-rod thread 3/8"
Type 30
Port threads 3/8" - 18 NPTF
Temperature Range -40°C to +80°C
Distance between bolts 120.6 mm
Bolt Threads 5/8"
Total Length 124.0 mm
Push-Rod Length 57.2 mm
Version Without boot
Yoke With
Return-Spring Force 130 N
Bolt Lengths 38.0 mm
Type Of Operation Cam
Max. operating pressure 8.0 bar
Stroke 75.9 mm
Output Force M 9800 N
Output Force 9800 N

Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
