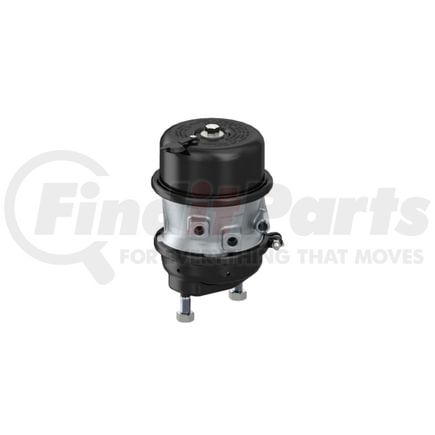

WABCO 9253800020 - Air Brake Spring Brake - Double Diaphragm Tristop 20/24
$20949
Limited Availability
. Learn more
WABCO part description
Product Attributes
| Port Angle | 0° |
| Weight | 15.43234 |
| Push-Rod Length | 15 mm |
| Max. operating pressure | 145.0 psi |
| Port thread 12 | 3/8" - 18 NPTF |
| Temperature Range | -40°C to +80°C |
| Return-Spring Force | 200 N |
| Stroke | 64.0 mm |
| Total Length | 329.0 mm |
| Bolt Threads | M16 x 1.5 |
| Bolt Lengths | 43.0 mm |
| Type Of Operation | Disc |
| Distance between bolts | 120.6 mm |
| Version | Without boot |
| Port thread 11 | 3/8" - 18 NPTF |
| Type | 20/24 |
| Release Pressure | 5.1 bar |
| Push-rod thread | Ball R8 |
WABCO 9253800020 Cross Reference
We have 1 alternatives for the 9253800020 by WABCO:
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
