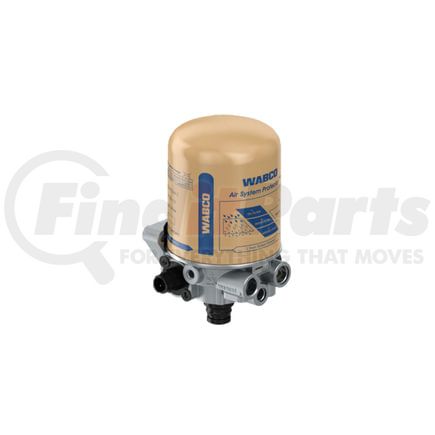

Name: WABCO 4324101660 Air Brake Dryer - Single Chamber, Desiccant Cartridge, 188.5 psi
SKU: 4324101660
Price: 1027.49 USD
Availability: InStock

WABCO part description

Single Chamber Air Dryer+Unloader

Product Attributes

Calculated Volume (dm³)	11.35
Operational Range	1.3 bar
Cut-Out Pressure	12.5 bar
Size	181 x 309 x 203
Max. operating pressure	13.0 bar
Voltage	24 V
Mounting	30
Temperature Range	-40°C to +65°C
Weight	7.937
Heater	894 260 049 2
Heating Connection	Bayonet DIN 72585-A1-2.1-1-Sn/K2
Cooling	Compressed air
Port thread 22	M16 x 1.5 JED - 388
Cartridge Type	Desiccant Cartrige
Port threads	M22 x 1.5
Port thread 1	M22 x 1.5 JED-388
Exhaust	No (432 407 012 0 retrofittable)
Silencer	No (432 407 012 0 retrofittable)
Port thread 21	M22 x 1.5 JED - 388
Unloader	Yes

WABCO 4324101660 Cross Reference

We have 4 alternatives for the 4324101660 by WABCO:

Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
