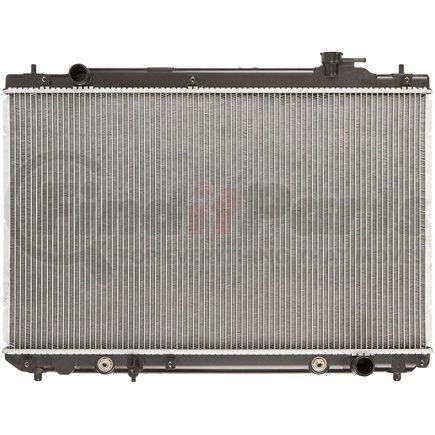

Name: Reach Cooling 41-2453 Radiator
SKU: 412453
Price: 149.99 USD
Availability: InStock

REACH COOLING part description

Product Description

Radiator

Application Summary

Toyota:2001-2007 Highlander

Features & Benefits

Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Folded fin edges increase stability and heat disbursement properties.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
Our fin edges are folded for increased stability and heat disbursement properties.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

No Shipping Restriction

radiator, complete, engine cooling, rad, cooling, heat, transfer

Product Attributes

Core Height	449.3 MM
Outlet Header Length	29.75 IN
Outlet Header Width	1.562 IN
Core Thickness	0.625 IN
Core Width	728.1 MM
Inlet Header Length	29.5 IN
Inlet Header Width	39.7 MM
Transmission Oil Cooler Distance between Fittings	14.75 IN
Inlet Location	Upper Left
Outlet Diameter	1 5/16 IN
Core Row Quantity	1
Tank Material	Plastic
Engine Oil Cooler Included	No
Radiator Cap Included	No
Trans Cooler Adapter Fittings Included (True/False)	True
Core Material	Aluminum
Transmission Oil Cooler Included	Yes
Inlet Diameter	1 5/16 IN
Down Flow Or Cross Flow Type	Down Flow
Fitting Connection Type	Pipe connect
Outlet Location	Lower Right
Inlet Header Length	749.3 mm
Outlet Header Width	39.674 mm
Core Height	17 11/16 IN
Core Thickness	16 MM
Transmission Oil Cooler Distance between Fittings	375 MM
Outlet Diameter	33.3 MM
Core Height	449.249 MM
Core Width	728.116 MM
Inlet Diameter	33.324 mm
Outlet Header Length	755.65 MM
Outlet Header Width	39.69 MM
Inlet Header Width	1 9/16 IN
Inlet Header Width	39.674 mm
Outlet Diameter	33.324 MM
Inlet Diameter	33.3 MM
Core Thickness	15.875 MM
Outlet Header Length	755.65 mm
Transmission Oil Cooler Distance between Fittings	374.65 MM
Core Width	28 2/3 IN
Inlet Header Length	749.30 MM

Additional Information

Country of Origin (Primary)	CN
UPC	06949521711962
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

REACH COOLING 41-2453 Cross Reference

We have 1 alternatives for the 41-2453 by REACH COOLING:

DENSO 221-0509

Fits Vehicles

Toyota Highlander (2001-2007)
