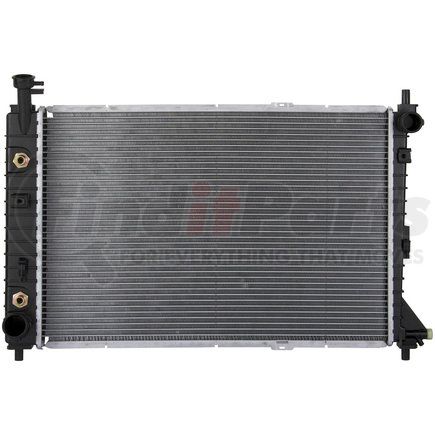

Name: Reach Cooling 41-2138 Radiator
SKU: 412138
Price: 190.49 USD
Availability: InStock

REACH COOLING part description

Product Description

Radiator

Application Summary

Ford:97-2004 Mustang

Features & Benefits

Radiators are the foundation of any engine cooling system. Tasked with preventing the vehicle from overheating, the radiator is vital to keeping vehicles up and running.
Reach utilizes longer header tabs for increased pressure resistance, this reduces the potential for tank-to-header leaks.
Thermal expansion reduce failure rates by allowing improved core expansion and contraction.
Folded fin edges increase stability and heat disbursement properties.
Deep extrusion headers provide a stronger tube-to-header joint that is more resistant to the effects of vibration and thermal tube expansion.
Reach B-Type tubes feature central reinforcement to provide greater tolerance to pressure reducing the probability of tube failure.
Our deep extrusion header provides a stronger tube to header joint which is more resistant to the effects of vibration and thermal tube expansion, virtually eliminating tube to header leaks.
Thermal expansion cuts allow for longer life and reduce failure rates by allowing improved core expansion and contraction during normal heat cycles.
Our included "multi-fit" attachments allow one radiator to cover multiple vehicle applications without sacrificing OE fit. This results in wider vehicle coverage with substantially less inventory.
We design and manufacture all our radiators to meet or even exceed Original Equipment specifications. We take pride in producing the most reliable replacement parts in the market.
We use longer header tabs for increased pressure resistance. This reduces the potential for tank to header leaks.
Our fin edges are folded for increased stability and heat disbursement properties.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.
Our B-Type tubes feature central reinforcement to provide greater tolerance to pressure. Stronger tube design means drastically reduced probability of tube failure.

No Shipping Restriction

radiator, engine cooling, rad, car radiator, auto radiator, radiator cap

Product Attributes

Core Width	428 MM
Outlet Header Width	1 7/8 IN
Fitting Connection Type	Threaded
Inlet Header Length	17 3/16 IN
Tank Material	Plastic
Inlet Diameter	1.75 IN
Inlet Location	Upper Right
Core Thickness	26 MM
Inlet Header Width	1 7/8 IN
Core Height	635 MM
Outlet Header Length	436.56 MM
Outlet Diameter	1 1/2 IN
Radiator Cap Included	No
Transmission Oil Cooler Included	Yes
Down Flow Or Cross Flow Type	Cross Flow
Core Material	Aluminum
Transmission Oil Cooler Distance between Fittings	10 IN
Outlet Location	Lower Left
Transmission Oil Cooler Type	Plated
Core Row Quantity	1
Engine Oil Cooler Included	No
Inlet Header Width	47.625 mm
Outlet Diameter	38.1 MM
Core Height	25 IN
Core Thickness	1 IN
Core Width	426.72 MM
Inlet Header Length	436.549 mm
Outlet Diameter	38.1 MM
Inlet Diameter	44.45 mm
Threaded Size-1	5/8-18UNF-2A*1/2-20UNF-2B
Transmission Oil Cooler Distance between Fittings	254 MM
Core Thickness	25.4 MM
Outlet Header Width	47.625 mm
Transmission Oil Cooler Distance between Fittings	254 MM
Core Height	635 MM
Outlet Header Length	436.549 mm
Core Width	16.8 IN
Inlet Header Length	436.6 MM
Outlet Header Width	47.6 MM
Outlet Header Length	17.187 IN
Inlet Header Width	47.6 MM
Inlet Diameter	44.5 MM

Additional Information

Country of Origin (Primary)	CN
UPC	06949521709488
VMRS Code	042002001
UNSPSC	25174002

Part Interchanges

Fits Vehicles

Ford Mustang (1997-2004)
