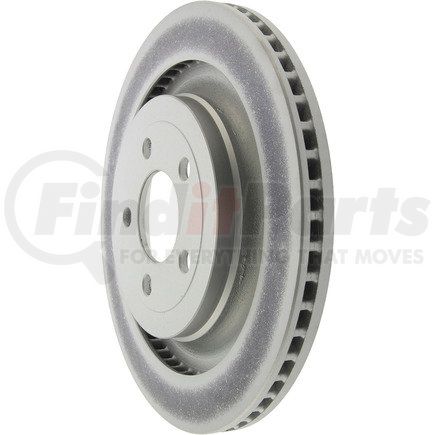

Centric 320.61109C - Centric GCX HC Rotor with High Carbon Content and Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX HC Rotor with High Carbon Content and Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Misc Holes [cntrc] | 0 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 8.160 |
| Weight [cntrc] Lbs | 18.000 |
| Product Grade [cntrc] | Premium |
| Hat Id [cntrc] Mm | 174.200 |
| Hat Id [cntrc] In | 6.858 |
| OEM Vane Count [cntrc] | 53 |
| Vane Style [cntrc] | Straight |
| Disc Mounting [cntrc] | Floating |
| Discard Thickness | 23.500 MM |
| Discard Thickness | 0.925 IN |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 43.700 MM |
| Overall Height | 1.720 IN |
| Outside Diameter | 12.992 IN |
| Outside Diameter | 330.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.795 IN |
| Center Hole Diameter | 71.000 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.800 MM |
| Stud/Lug Hole Diameter | 0.622 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590391305 |
Part Interchanges
CENTRIC 320.61109C Cross Reference
We have 3 alternatives for the 320.61109C by CENTRIC:
