DELPHI part description
Product Description

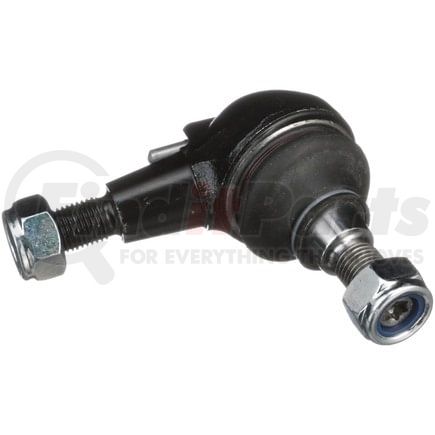

Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower, Front Lower Forward. For the position specific to your vehicle, refer to the Applications. |
| Material | Steel |
| Maximum Outside Diameter | 2.110 IN |
| Maximum Outside Diameter | 53.60 MM |
| Color | Silver |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 53.6 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 3.555 IN |
| Height | 90.30 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.846 IN |
| Stud Thread Length | 21.5 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.941 IN |
| Stud Tapered End 2 Diameter | 23.9 MM |
| 9213 | 0.744 IN |
| Stud Tapered End 1 Diameter | 18.9 MM |
| Stud Thread Pitch | 1.5 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604299913 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Mercedes-Benz CLS550 (2012-2018)
- Mercedes-Benz CLS400 (2015-2018)
- Mercedes-Benz E400 (2013-2016)
- Mercedes-Benz E250 (2014-2016)
- Mercedes-Benz CLS63 AMG (2012-2013)
- Mercedes-Benz E63 AMG (2010-2013)
- Mercedes-Benz E550 (2010-2011)
- Mercedes-Benz E350 (2010-2016)
