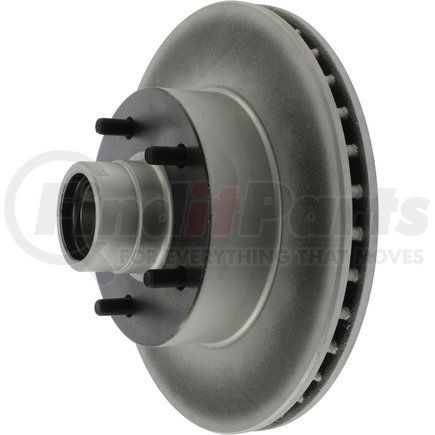

Centric 320.62002 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Hub & Rotor |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 23.400 |
| Weight [cntrc] Kgs | 10.640 |
| Outer Bearing # [cntrc] | 410.91002 |
| Inner Seal # [cntrc] | 417.62000 |
| Inner Bearing # [cntrc] | 410.91006 |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 24.510 MM |
| Discard Thickness | 0.965 IN |
| Nominal Thickness | 26.300 MM |
| Nominal Thickness | 1.035 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.438 IN |
| Overall Height | 118.100 MM |
| Overall Height | 4.650 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| 54 | 279.600 MM |
| Rotor Outside Diameter | 11.008 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Stud/Lug Hole Diameter | 0.445 IN |
| Stud/Lug Hole Diameter | 11.303 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.748 IN |
| Mounting Bolt Hole Circle Diameter | 120.600 MM |
| Center Hole Diameter | 2.776 IN |
| Center Hole Diameter | 70.500 MM |
| Bearings Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590426243 |
