CENTRIC 320.46063 Part Description
Manufacturer
Product Description

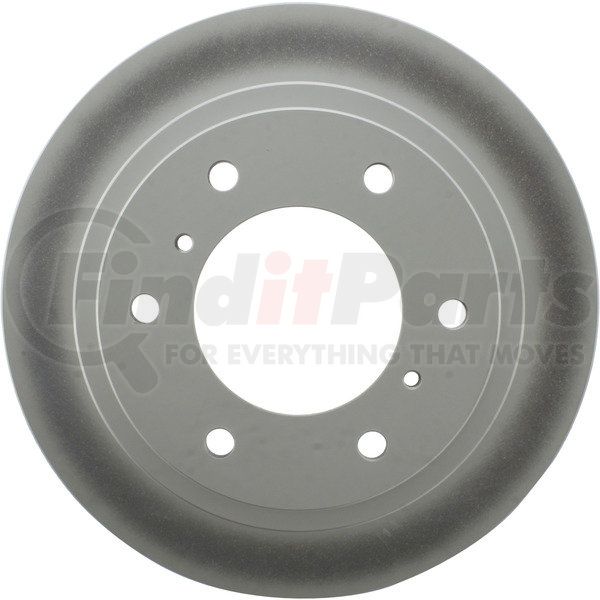

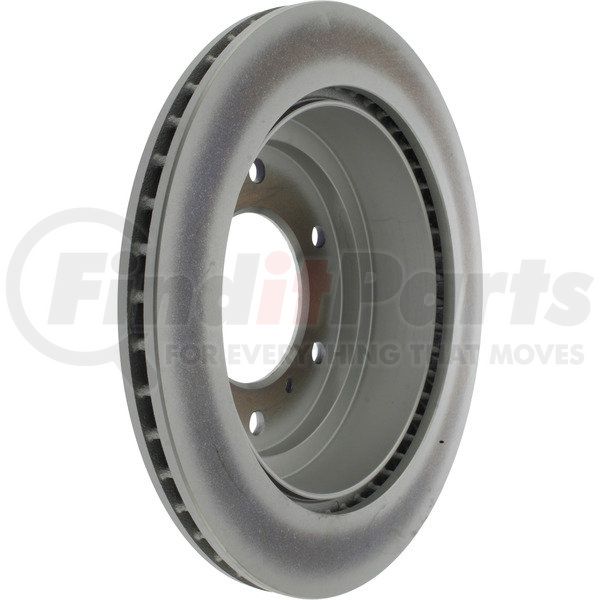

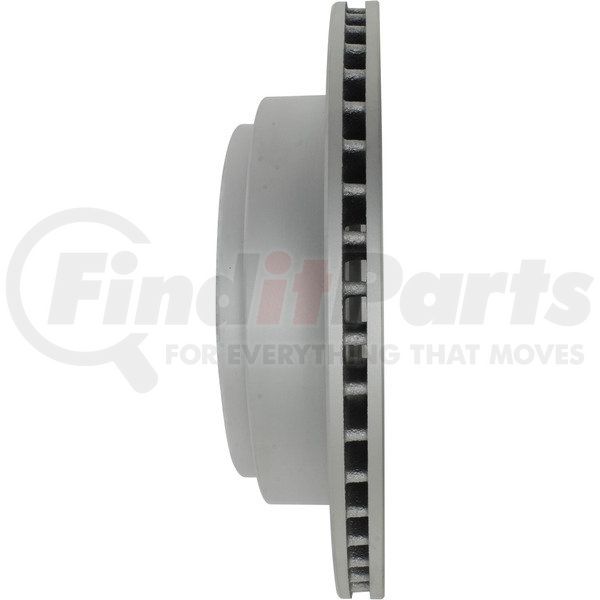

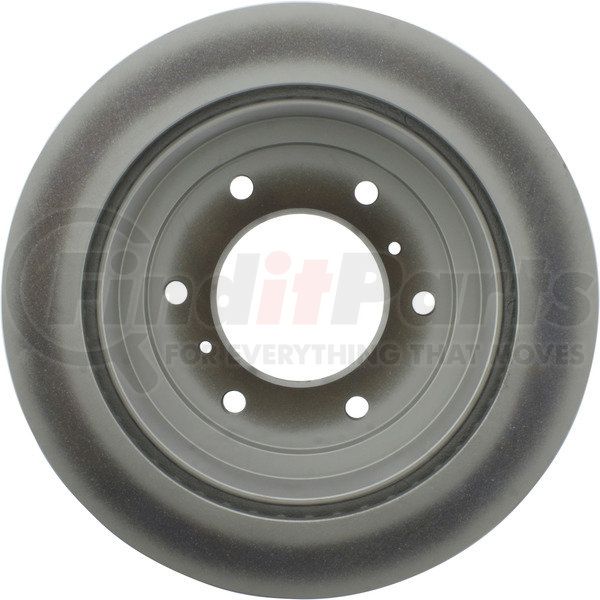

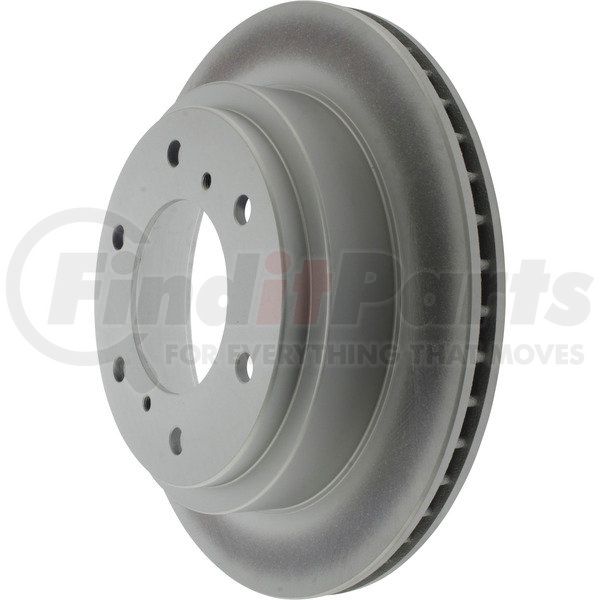

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.46063 Specifications
Product Attributes
| Weight [cntrc] Lbs | 15.000 |
| Weight [cntrc] Kgs | 6.820 |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 2 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Max Pb Drum Dia [cntrc] In | 7.874 |
| Max Pb Drum Dia [cntrc] Mm | 200.000 |
| Disc Mounting [cntrc] | Floating / DIH |
| Discard Thickness | 0.803 IN |
| Discard Thickness | 20.400 MM |
| Nominal Thickness | 0.866 IN |
| Nominal Thickness | 22.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 72.200 MM |
| Overall Height | 2.843 IN |
| Outside Diameter | 300.000 MM |
| Outside Diameter | 11.811 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 199.000 MM |
| Nominal Drum Diameter | 7.835 IN |
| Bearings Included | No |
| Center Hole Diameter | 94.000 MM |
| Center Hole Diameter | 3.701 IN |
| Mounting Bolt Hole Circle Diameter | 139.700 MM |
| Mounting Bolt Hole Circle Diameter | 5.500 IN |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 12.600 MM |
| Stud/Lug Hole Diameter | 0.496 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590390193 |
