Centric 320.04002 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description

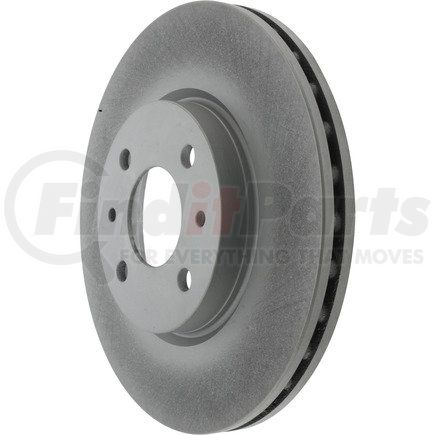

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Pillar |
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Lbs | 11.600 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 5.270 |
| Discard Thickness | 0.795 IN |
| Discard Thickness | 20.200 MM |
| Nominal Thickness | 0.866 IN |
| Nominal Thickness | 22.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 40.500 MM |
| Overall Height | 1.594 IN |
| Outside Diameter | 257.300 MM |
| Outside Diameter | 10.130 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.323 IN |
| Center Hole Diameter | 59.000 MM |
| Mounting Bolt Hole Circle Diameter | 98.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.858 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 13.300 MM |
| Stud/Lug Hole Diameter | 0.524 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590386349 |
Part Interchanges
CENTRIC 320.04002 Cross Reference
We have 2 alternatives for the 320.04002 by CENTRIC:
