DORMAN TO60052XL Part Description
Manufacturer
Product Description

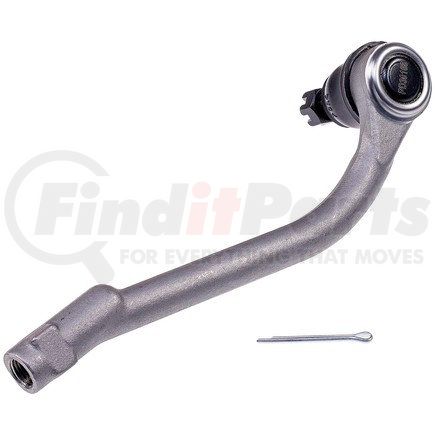

Steering Tie Rod End
Application Summary
Hyundai Elantra 2012-07, Kia Forte 2013-10, Kia Forte Koup 2013-10, Kia Forte5 2013-12
Features & Benefits
- Extended-life construction - this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers
- Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
- Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
- Premium corrosion resistance - WeatherShield external coating to resist corrosion
Steering, Tie, Rod, End, Ties, Rods, Ends
DORMAN TO60052XL Specifications
Product Attributes
| Width | 36.4 MM |
| Type | Doblado |
| Mounting Hardware Included | Oui |
| End 2 Thread Diameter | 10 MM |
| Height | 33.2 MM |
| Housing Material | Acero |
| Tube Diameter | 17.9 MM |
| Adjustable | Oui |
| Bearing Material | Polímero |
| End 1 Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| End 2 Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Grade | Regular |
| Stud Type | Cono |
| End 2 Thread Pitch | 1.25 MM |
| End 1 Thread Pitch | 1.5 MM |
| Dust Boot Material | Policloropreno |
| Tie Rod Material | Acero |
| End 1 Thread Diameter | 14 MM |
| Bolts Included | Non |
| Length | 110 MM |
| End 1 Attachment Type | Roscado |
| Color | Noir |
| Material | Acero |
| End 1 Gender | Hembra |
| Outside Diameter | 13.3 mm |
| End 2 Gender | Macho |
| Package Contents | 1 Tie Rod End |
| Finish | Revestimiento en polvo |
| Thread Pitch | 1.25 mm |
| Pre-Greased | Oui |
| Weight | 1.6 lb |
| Grease Fitting Included | Non |
| Dust Boot Included | Oui |
| Contenidos del paquete | 1 extremo del terminal de la dirección |
| Outside Diameter | 13.3 mm MM |
| Thread Pitch | 1.25 mm mm |
| Weight | 1.6 Lbs LB |
| Grade Type | Reemplazo estándar |
| Diámetro la rosca de extremo 1 | 14 mm MM |
| Diámetro la rosca de extremo 2 | 10mm MM |
| End 1 Thread Diameter | 14 mm MM |
| End 1 Thread Pitch | 1.5 mm mm |
| End 2 Thread Diameter | 10 mm MM |
| End 2 Thread Pitch | 1.25 mm MM |
| Espacio de la rosca del extremo 1 | 1,5mm MM |
| Espacio de la rosca del extremo 2 | 1.25 mm MM |
| Paso de rosca | 1.25 mm MM |
Additional Information
| Country of Origin (Primary) | TH |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00669810716831 |
| VMRS Code | 011001031 |
| UNSPSC | 25174207 |
DORMAN TO60052XL Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45A1248, 46A1248A |
| Beck/Arnley | 1015870, 101-5870 |
| Centric Parts | 612.51029 |
| Delphi | TA2481 |
| Hyundai | 568202H090 |
| MEVOTECH | MS90613 |
| MOOG | ES800230 |
| MOOG Chassis Products | ES800230 |
| Mcquay-Norris | ES4486 |
| Mevotech Original Grade | GS90613 |
| Mevotech Supreme | MS90613 |
| QuickSteer | ES800230 |
| SUSPENSIA | X18TE1779 |
| TRW | JTE2149 |
| XRF | ES800230 |
| XRF Chassis | ES800230 |
DORMAN TO60052XL Fits Vehicles
- Kia Forte Koup (2010-2013)
- Kia Forte5 (2012-2013)
- Kia Forte (2010-2013)
- Hyundai Elantra (2007-2012)
