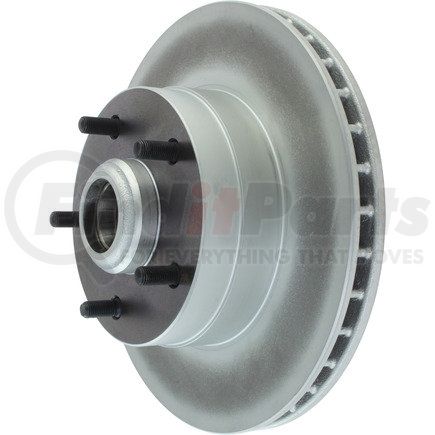

Centric 320.62000 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Disc Mounting [cntrc] | Hub & Rotor |
| Outer Bearing # [cntrc] | 410.91002 |
| Weight [cntrc] Lbs | 24.000 |
| Vane Style [cntrc] | Straight |
| Inner Bearing # [cntrc] | 410.91006 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 10.910 |
| Inner Seal # [cntrc] | 417.62002 |
| Misc Holes [cntrc] | 0 |
| Discard Thickness | 24.500 MM |
| Discard Thickness | 0.965 IN |
| Nominal Thickness | 26.300 MM |
| Nominal Thickness | 1.035 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.438 IN |
| Overall Height | 101.500 MM |
| Overall Height | 3.996 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| 54 | 279.300 MM |
| Rotor Outside Diameter | 10.996 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 70.400 MM |
| Center Hole Diameter | 2.772 IN |
| Mounting Bolt Hole Circle Diameter | 120.600 MM |
| Mounting Bolt Hole Circle Diameter | 4.748 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 11.110 MM |
| Stud/Lug Hole Diameter | 0.445 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590252101 |
Part Interchanges
CENTRIC 320.62000 Cross Reference
We have 2 alternatives for the 320.62000 by CENTRIC:
