STOPTECH part description

Product Description

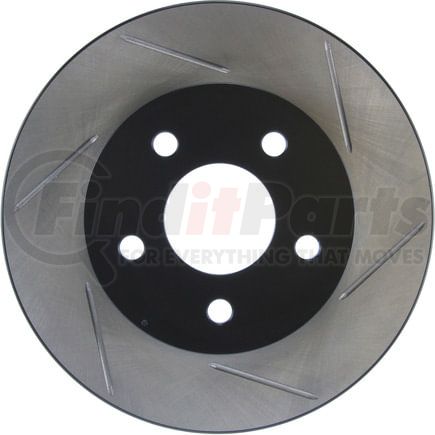

StopTech Sport Slotted Brake Rotor; Rear Left

Application Summary

2005 - 2008 Chevrolet Cobalt, 2008 - 2010 Chevrolet HHR, 2004 - 2012 Chevrolet Malibu, 2005 - 2007 Pontiac G4, 2007 - 2010 Pontiac G5, 2005 - 2010 Pontiac G6, 2005 - 2006 Pontiac Pursuit, 2007 - 2009 Saturn Aura, 2004 - 2007 Saturn Ion

Features & Benefits

  • Premium e-coated rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Slotted for increased bite; improved looks and better performance

Sport Rotor; StopTech; StopTech Rotor; Stop Tech Rotor; Stop-Tech Sport Rotor; StopTech Sport Rotor; StopTech Brake Rotor

Product Attributes

Discard Thickness 12.000 MM
Nominal Thickness 0.551 IN
Hat Finish Coated
Overall Height 1.783 IN
Outside Diameter 270.000 MM
ABS Tone Ring Included No
Surface Type Slotted
Solid Or Vented Type Rotor Solid
Bearings Included No
Center Hole Diameter 65.700 MM
Mounting Bolt Hole Circle Diameter 4.331 IN
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 14.300 MM
California Proposition 65 Text [basic] WARNING: Cancer and Reproductive Harm
Disc Mounting [cntrc] Floating
Misc Holes [cntrc] 0
Weight [cntrc] Kgs 5.230
Weight [cntrc] Lbs 11.500
Stud/Lug Hole Diameter 0.563 IN
Disc Mounting Floating
Misc Holes 0
Weight 5.230
Center Hole Diameter 2.587 IN
Overall Height 45.300 MM
Nominal Thickness 14.000 MM
Mounting Bolt Hole Circle Diameter 110.000 MM
Discard Thickness 0.472 IN
Outside Diameter 10.630 IN

Additional Information

Country of Origin (Primary) CN
Harmonized Tariff Code (HTS) 8708305030
NAFTA Preference Criterion Code B
UPC 00805890472704

Fits Vehicles

  • Pontiac G4 (2006)
  • Chevrolet HHR (2008-2010)
  • Pontiac Pursuit (2006)
  • Saturn Aura (2007-2009)
  • Pontiac G5 (2007-2010)
  • Pontiac G6 (2005-2010)
  • Chevrolet Cobalt (2005-2008)
  • Saturn Ion (2004-2007)
  • Chevrolet Malibu (2004-2012)
