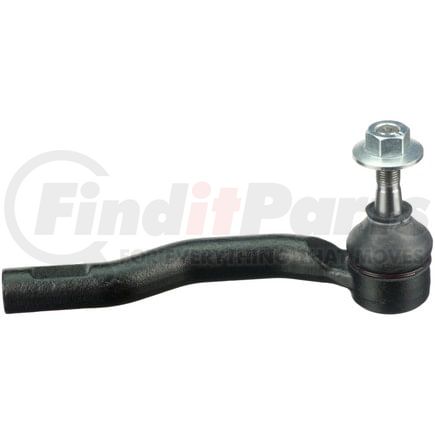

Name: Delphi TA3190 Tie Rod End
SKU: ta3190
Price: 40.49 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Right Outer
Item Grade	Standard Replacement
Color	Black
End 1 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	49.3 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	14.00 MM
End 2 Thread Diameter	0.551 IN
Height	94.70 MM
Grade Type	Standard
Housing Material	Steel
Tube Diameter	22.50 MM
36	0.886 IN
Adjustable	No
Weight	1.85 lb
Cone Outside Diameter	15.50 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
Length Stud Center to End	186.50 MM
Length Stud Center to End	7.343 IN
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.472 IN
End 1 Thread Diameter	12.00 MM
Shank Length	15.50 MM
Stud Length	15.50 MM
Grade	Premium
Shank Length	0.610 IN
Stud Length	0.610 IN
662	0.610 IN

Additional Information

Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
UPC	00689604284629
VMRS Code	015004019
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Toyota Prius Plug-In (2012-2015)
Lexus CT200h (2011-2017)
Toyota Prius (2010-2015)
