NGK Spark Plugs 93501 - NGK Iridium IX Spark Plug
- Part Number
- 93501
- Manufacturer
- NGK SPARK PLUGS
- Description
-
NGK Iridium IX Spark Plug
details
$899
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
NGK SPARK PLUGS part description
Product Description

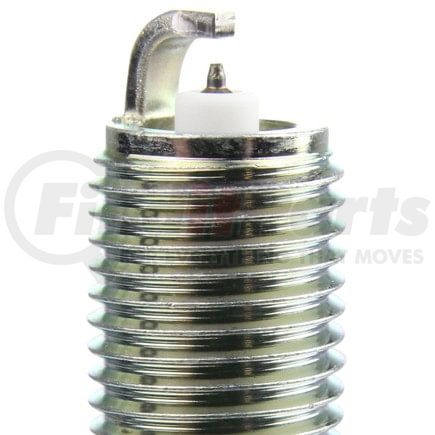

NGK Iridium IX Spark Plug
Features & Benefits
- SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
- IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
- TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
- SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
- TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
Product Attributes
| Part Number | LKAR7BIX-11S |
| Stock Number | 93501 |
| Ground Electrode Tip Design | Taper Cut |
| Ground Configuration | J-Gap |
| Electrical Terminal Type | Non-Removable Nut |
| Center Electrode Core Material | Copper |
| Center Electrode Tip Material | Iridium |
| Pre-Gap Size | .044 IN |
| Ground Electrode Quantity | 1 |
| Hex Size | 14 MM |
| Insulator Height | 51.00 MM |
| Manufacturer Heat Range | 7 |
| Seat Type | Flat |
| Reach | 26.5 MM |
| Thread Diameter | 12.00 MM |
| Service Number | LKAR7BIX-11S |
| Resistance | 5000.0 82 |
| Ground Electrode Core Material | Nickel |
| Washer Included | Yes |
| Grade Type | Performance |
| Hex Size | 14mm |
| Insulator Height | 1.93 IN |
| Reach | 1.043 IN |
| Thread Diameter | 0.472 IN |
| Insulator Material | Ceramic |
| Resistor Type | Yes |
| 6648 | 0.0 IN |
| Ground Electrode Tip Material | Nickel |
| 9459 | No |
| 9506 | 0.12 IN |
| 9608 | Fine Wire |
| 9745 | Crush |
| 9805 | Mid Projection |
| Short Style Spark Plug | No |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 2 |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8511100000 |
| UPC | 00087295935019 |
| VMRS Code | 033003005 |
| UNSPSC | 26101732 |
Part Interchanges
Fits Vehicles
- Mazda CX-90 (2024)
- Honda HR-V (2023-2025)
- Mazda CX-50 (2023-2024)
- Mazda CX-30 (2020-2024)
- Nissan Frontier (2020-2024)
- Nissan NV3500 (2018-2021)
- Nissan NV2500 (2018-2021)
- Toyota Yaris iA (2017-2018)
- Nissan TITAN (2017-2024)
- Nissan Armada (2017-2024)
- Toyota Prius Plug-In (2012-2015)
- Honda Civic (2016-2024)
- Nissan TITAN XD (2016-2024)
- Subaru Crosstrek (2016-2017)
- Scion iA (2016)
- Mazda CX-3 (2016-2022)
- Mazda MX-5 Miata (2016-2023)
- Toyota Yaris (2016-2020)
- Acura ILX (2016-2022)
- Acura TLX (2015-2020)
- INFINITI Q70L (2015-2019)
- Honda CR-V (2015-2019)
- Honda Fit (2015-2019)
- INFINITI Q70 (2014-2019)
- INFINITI QX70 (2014)
- INFINITI QX60 (2014-2020, 2022-2024)
- INFINITI QX80 (2014-2024)
- INFINITI Q50 (2014-2018)
- Mazda 6 (2014-2021)
- Nissan Pathfinder (2013-2024)
- Honda Accord (2013-2017)
- Subaru XV Crosstrek (2013-2015)
- Subaru Outback (2013-2019)
- Subaru Legacy (2013-2019)
- INFINITI JX35 (2013)
- Mazda CX-5 (2013-2023)
- Scion iQ (2012-2014)
- Mazda 3 Sport (2011-2024)
- Mazda 3 (2012-2024)
- Toyota Prius V (2012-2015)
- Subaru Impreza (2012-2016)
- INFINITI M35h (2012-2013)
- Lexus CT200h (2011-2015)
- Nissan Quest (2011-2017)
- Subaru Forester (2011-2018)
- INFINITI G25 (2011-2012)
- INFINITI QX56 (2011-2013)
- INFINITI M56 (2011-2013)
- Toyota Prius (2010-2015)
- INFINITI M35 (2009-2010)
- Nissan Maxima (2009-2014, 2016-2023)
- INFINITI FX50 (2009-2013)
- INFINITI FX35 (2009-2012)
- Nissan Murano (2009-2024)
- Pontiac Vibe (2009-2010)
- Toyota Matrix (2009-2014)
- Toyota Corolla (2009-2015)
- INFINITI EX35 (2008-2012)
- Scion xD (2008-2014)
- Nissan 350Z (2007-2009)
- INFINITI G35 (2007-2008)
- Nissan Altima (2007-2018)
Headquartered in Wixom, Michigan, NGK® is a global leader in the design and manufacture of spark plugs for virtually every automotive and commercial vehicle application. It has grown immensely since its inception in 1936 with the expansion of its ignition product line and the introduction of its technical sensor and vehicle electronics line. NGK partners with OEMs and uses only the latest cutting tools to ensure each NGK product meets OE specifications for exact fit, form, and function. With world-class quality and engineering, NGK’s expertise goes beyond manufacturing the most reliable spark plugs for the automotive industry but also providing the best customer service possible.
