RANCHO part description

Product Description

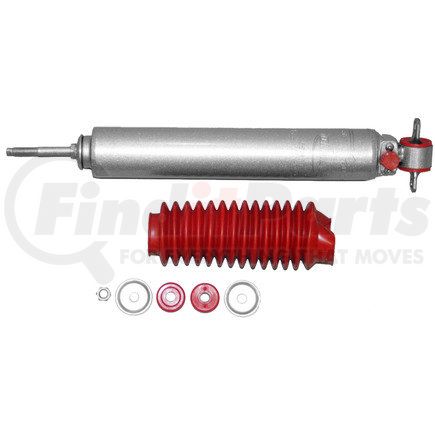

RS9000XL Suspension Shock Absorber

Features & Benefits

  • NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
  • DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
  • INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
  • REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
  • STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
  • HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
  • HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
  • SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
  • BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
  • BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
  • BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Product Attributes

Compressed Length 14.66 IN
Travel Length 8.45 in
Finish Painted
Internal Construction Type Tri Tube
Grade Type Performance
Extended Length 23.11 in
Adjustable Damping Yes
Dust Shield Included Yes
9747 Manual
9783 No
9789 S4
9791 XP4
9792 No
9908 No
Body Diameter 2.18
Lower Mount Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/16" Pin Length (Hole Center to Center)
Part Description Shock Absorber
Parts Pack(s) P01192
Upper Mount Type Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Compressed Length 372.4 MM
Extended Length 587 MM
Travel Length 214.6 MM
Shock Stroke 8.45 IN
Shock Stroke 214.6 MM
Lower Mount Code XP4
Upper Mount Code S4
Shock Absorber Rod End Measuring Point Center of Cross Pin
Shock Absorber Body End Measuring Point Base of Stem
Gas Charged Yes
Mounting Hardware Included Yes
Body Diameter 2.18 IN
Body Diameter 55.4 MM
Cylinder Outside Diameter 2.18 IN
Cylinder Outside Diameter 55.4 MM
Body Material Steel
Cylinder Material Steel
Body Color Silver
Cylinder Color Silver
Color Silver
10531 Painted
Boot Included Yes
9786 2.99 IN
9786 75.9 MM
Dust Shield Material Rubber
Dust Shield Color Red
1183 0.622 IN
1183 15.8 MM
Shaft Material Nitrocarburized
9801 1.26 IN
9801 32 MM
Internal Rebound Spring No
Type Telescopic
10530 Passive
10527 Yes
Adjustable Rebound Yes
10526 Progressive
10529 No
10528 No
10534 0 IN
10535 0 IN
Air Adjustable No
Air Ride Suspension No
9615 No
9620 No
9618 No
New Or Remanufactured New
Coil Over Springs Included No
Bearing Plate Included No
Spring Included No
9621 No
Spring Isolators Included No
Spring Seat Included No
9476 No
9619 No
Adjustable Damping Yes

Additional Information

Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
MSDS Sheet Number 01164
UPC 00039703092395
VMRS Code 016008003
UNSPSC 25172011

Fits Vehicles

  • Jeep TJ (1997-2006)
  • Jeep Wrangler (1997-2006)
  • Jeep Grand Cherokee (1993-2001)
  • Jeep Comanche (1986-1992)
  • Jeep Cherokee (1984-2001)
