Gates 85753 - Multi Master SD MegaFlex Hose
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
GATES part description
Product Description

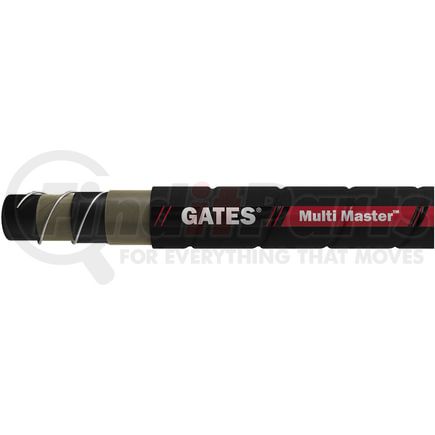

Multi Master SD MegaFlex Hose
Features & Benefits
- For use with GL Couplings [G43 Series], GlobalSpiral Plus Couplings [G22 Series] and MegaCrimp Couplings [G25 Series]
- Easy installation with 1:1 bend radius which saves time and is kink-free
- Industry-leading flexibility solves complex routings through tight spaces using less hose
- Uses a helical spiral-wire to prevent hose collapse under suction
- Meets SAE 100R4, J30R5, and J20R5 (except tube dimensions)
- Meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C)
- Note: Do not convey fuels over +120 Deg. F (+49 Deg. C) and for coolant applications (20R5) max temperature is +212 Deg. F (+100 Deg. C)
Product Attributes
| Product Type | Multi Master GMV Megaflex Return Line & Suction Hose - SAE 100R4 |
| Industrial Description | MULTI MASTER 20GMV MEGAFLEX 1 1/4X25FT |
| Type | Hydraulic Hose |
| Hose Pressure Description | Low Pressure |
| Maximum Working Pressure | 250 PS |
| Burst Pressure | 1000 PS |
| Temperature Rating | -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C), Do Not Convey Fuels Over +120 Deg. F |
| Length | 25 FT |
| 9941 | 20 |
| Inside Diameter | 1.25 IN |
| Outside Diameter | 1.66 IN |
| 9879 | 1.3 IN |
| Tube Description | Black |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | Synthetic, High Tensile Textile Reinforcement w/ Steel Wire Helix |
| Cover Material | Chloroprene - Type A |
| Cover Type | Type A - Corrugated - Flame Resistant |
| Cover Color | Black |
| 9856 | GL, Clamp over Beaded Nipple |
| 9453 | 100R4 |
| 9954 | N/A |
| 9953 | N/A |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009410000 |
| UPC | 00770075735298 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
Part Interchanges
