CENTRIC 123.68000 Part Description
Manufacturer
Product Description

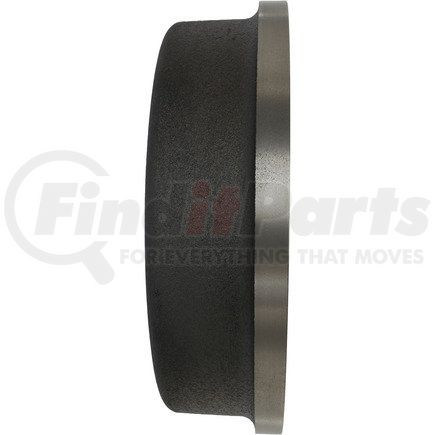

C-Tek Standard Brake Drum
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For best operation and ultimate strength
- OE-Matched Fit, Form, and Function
- 100% Mill Balanced
- For vibration free performance
- Meets SAE Standard for Tensile Strength
- For maximum service life and structural integrity
CENTRIC 123.68000 Specifications
Product Attributes
| Misc Holes [cntrc] | 3 |
| Weight [cntrc] Kgs | 7.045 |
| Weight [cntrc] Lbs | 15.500 |
| Mounting Type [cntrc] | Floating |
| Bolt Circle Diameter [cntrc] Mm | 139.700 |
| Bolt Circle Diameter [cntrc] In | 5.500 |
| Hub Hole / Register [cntrc] Mm | 76.454 |
| Hub Hole / Register [cntrc] In | 3.010 |
| Height [cntrc] Mm | 84.074 |
| Height [cntrc] In | 3.310 |
| Friction Surface Width [cntrc] Mm | 65.532 |
| Friction Surface Width [cntrc] In | 2.580 |
| Product Grade [cntrc] | Standard |
| Maximum Brake Diameter (Discard) | 282.400 MM |
| Maximum Brake Diameter (Discard) | 11.120 IN |
| Bolt Hole Quantity | 5 |
| Outside Diameter | 323.088 MM |
| Outside Diameter | 12.720 IN |
| Outer Cooling Fins | No |
| Mounting Hole Diameter | 15.240 MM |
| Mounting Hole Diameter | 0.600 IN |
| Nominal Drum Diameter | 11.030 IN |
| Nominal Drum Diameter | 280.200 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590014150 |
CENTRIC 123.68000 Cross References
CENTRIC 123.68000 Fits Vehicles
- International 1010 (1971)
- International 1110 (1971-1973)
- International 1000D (1969-1970)
- International 1100D (1969-1970)
- International 1000C (1968)
- International Scout II (1974-1980)
