Centric 121.63090 - C-Tek Standard Brake Rotor
$6149
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

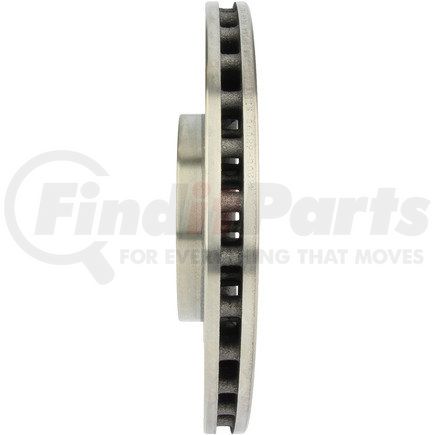

C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
Product Attributes
| Vane Style [cntrc] | Pillar |
| Hat Id [cntrc] In | 5.480 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 8.640 |
| Product Grade [cntrc] | Standard |
| Misc Holes [cntrc] | 5 |
| Weight [cntrc] Lbs | 19.050 |
| Disc Mounting [cntrc] | Floating |
| Hat Id [cntrc] Mm | 139.200 |
| OEM Vane Count [cntrc] | 93 |
| Discard Thickness | 1.004 IN |
| Discard Thickness | 25.500 MM |
| Nominal Thickness | 28.000 MM |
| Nominal Thickness | 1.102 IN |
| Overall Height | 45.800 MM |
| Overall Height | 1.803 IN |
| Outside Diameter | 305.000 MM |
| Outside Diameter | 12.008 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.327 IN |
| Center Hole Diameter | 59.100 MM |
| Mounting Bolt Hole Circle Diameter | 3.858 IN |
| Mounting Bolt Hole Circle Diameter | 98.000 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 13.200 MM |
| Stud/Lug Hole Diameter | 0.520 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590007954 |
Part Interchanges
CENTRIC 121.63090 Cross Reference
We have 4 alternatives for the 121.63090 by CENTRIC:
Fits Vehicles
- Ram ProMaster City (2015-2022)
