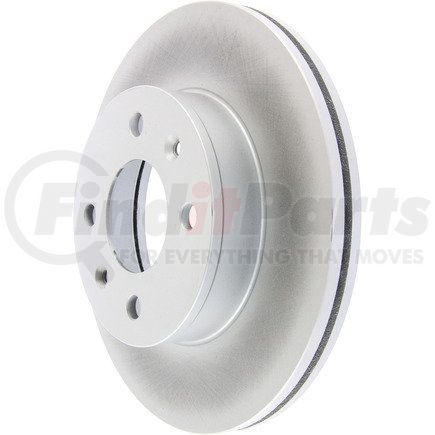

Centric 320.51017 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 2 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 11.000 |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 5.000 |
| Discard Thickness | 0.669 IN |
| Discard Thickness | 17.000 MM |
| Nominal Thickness | 19.000 MM |
| Nominal Thickness | 0.748 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 52.000 MM |
| Overall Height | 2.047 IN |
| Outside Diameter | 9.488 IN |
| Outside Diameter | 241.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 62.200 MM |
| Center Hole Diameter | 2.449 IN |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 12.500 MM |
| Stud/Lug Hole Diameter | 0.492 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590301557 |
Part Interchanges
CENTRIC 320.51017 Cross Reference
We have 2 alternatives for the 320.51017 by CENTRIC:
